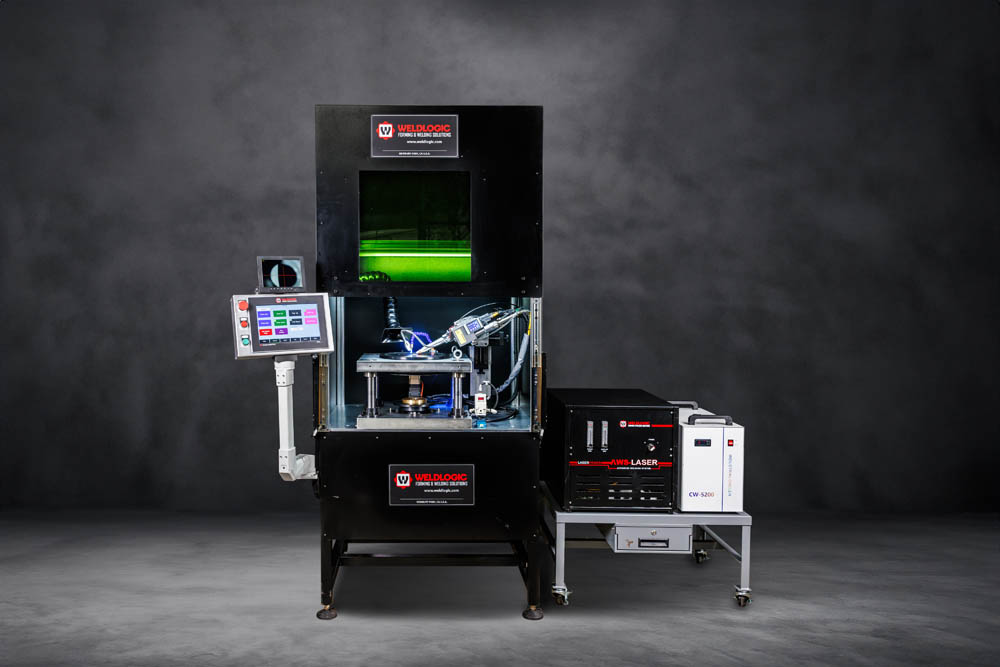

Auto ID Laser Edge Weld Cell

CHALLENGE

The bellows welding industry has relied on Micro-TIG and Micro-Plasma processes for decades — and for good reason. They work. But they demand highly skilled operators with years of experience to maintain daily volume and weld quality. Electrode shape, gas flow rates, placement, distance, and wear all factor into the training burden — and with skilled welders retiring faster than they can be replaced, the next generation simply isn’t filling the gap.

SOLUTION

Weldlogic Engineering and our team of Laser Weld Specialists developed and validated an automated I.D. laser edge welding process that meets and exceeds the weld strength and quality of the best Micro-TIG and Plasma processes — in the hands of a low-skill operator.

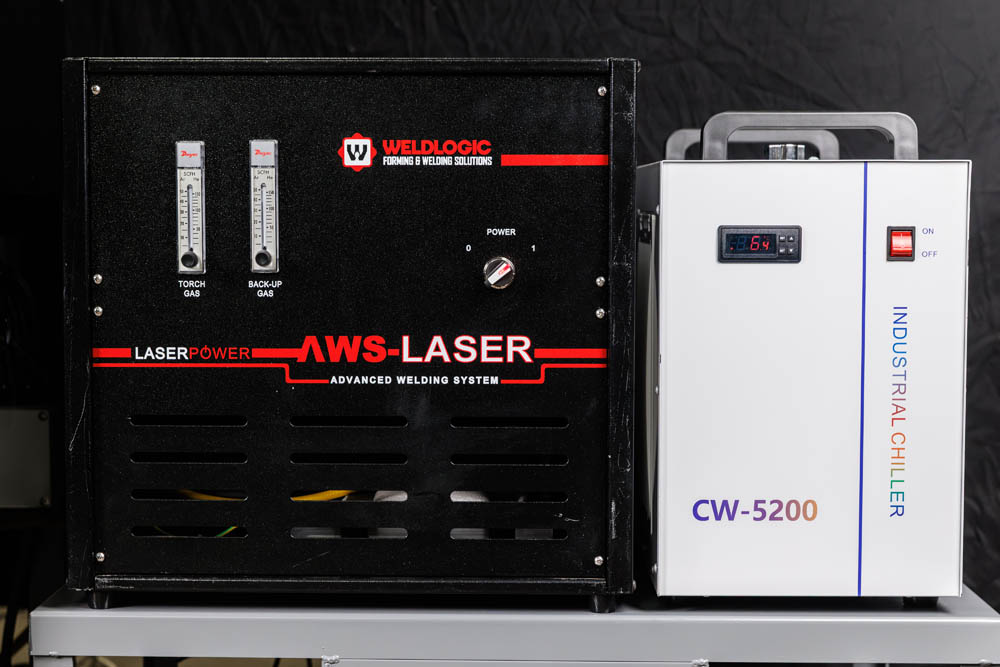

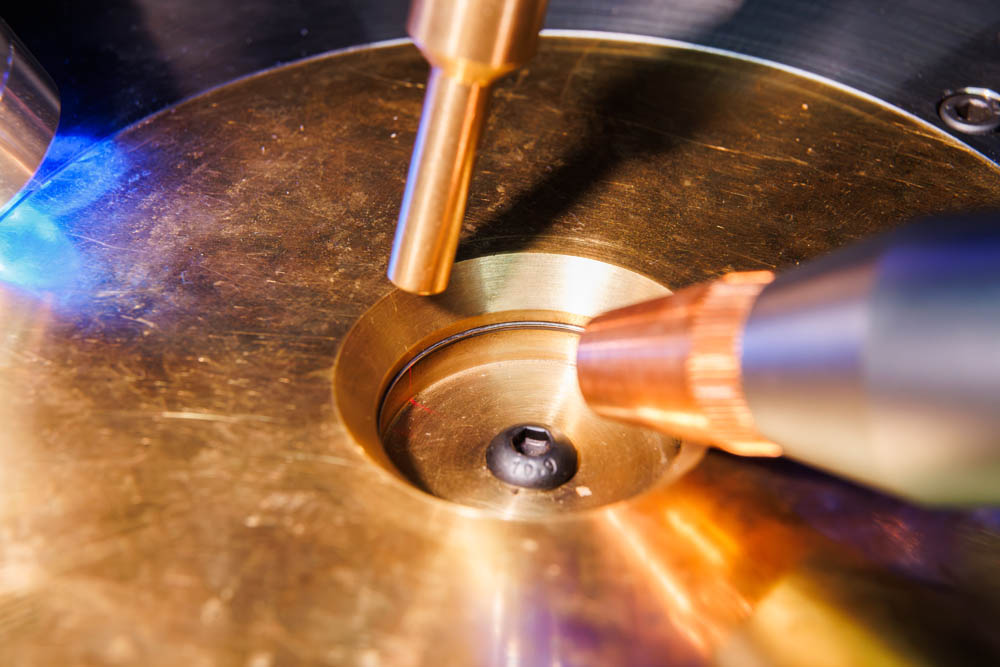

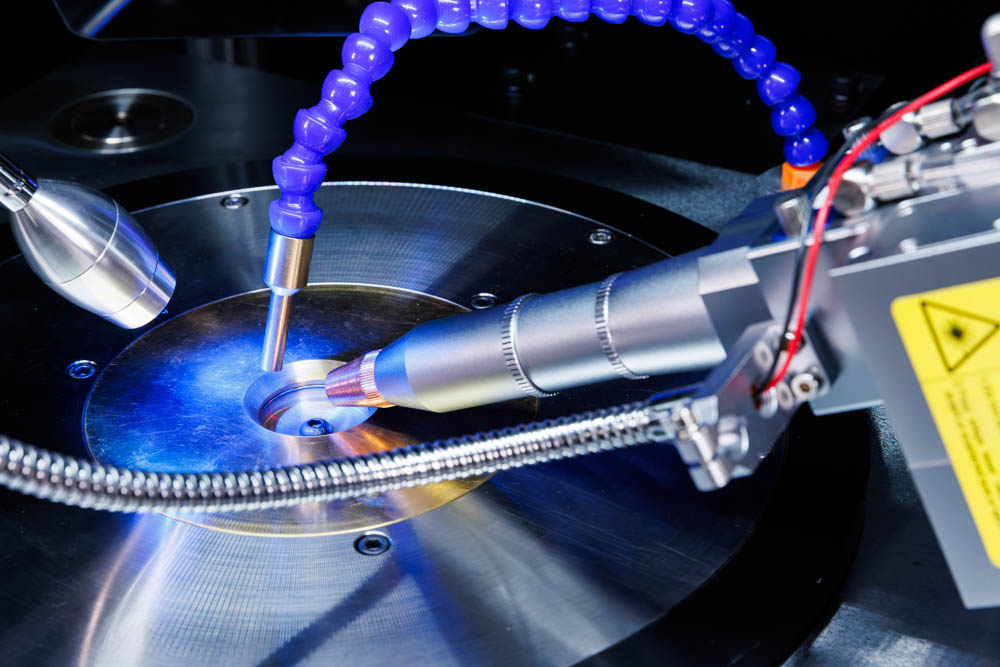

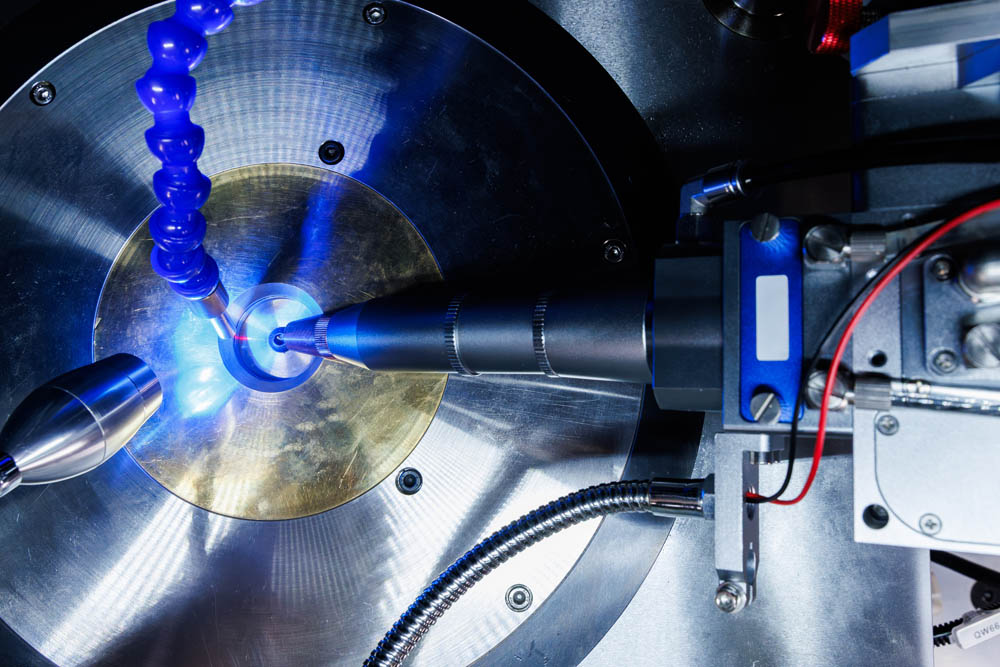

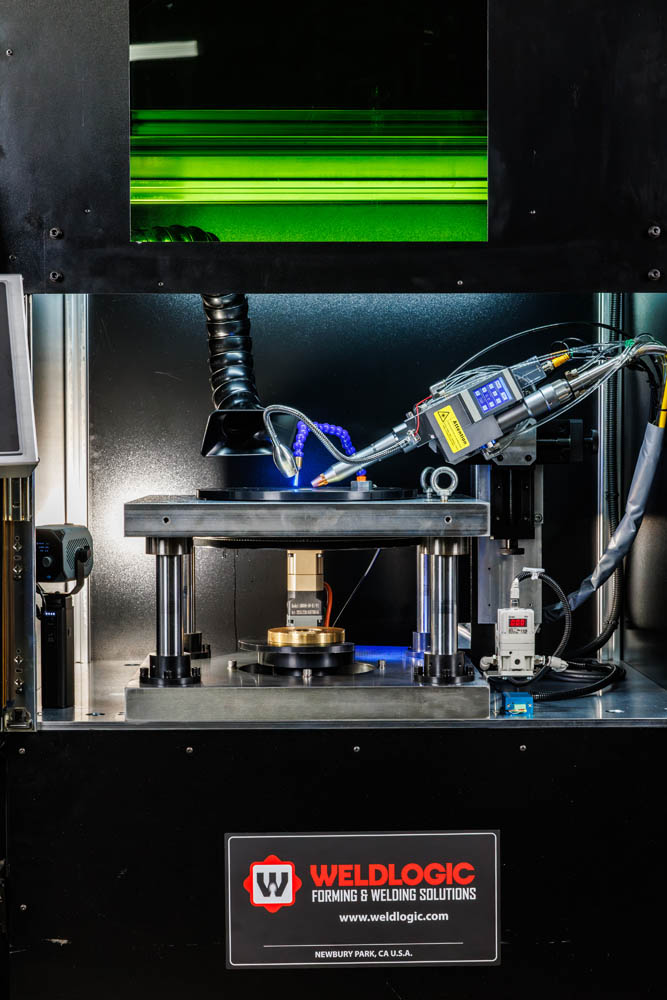

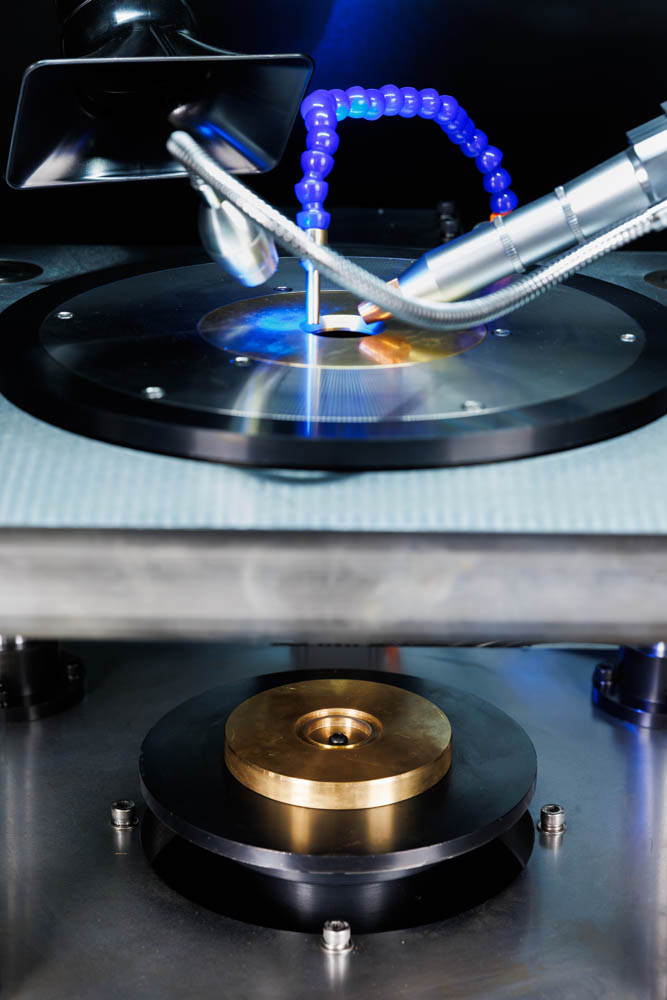

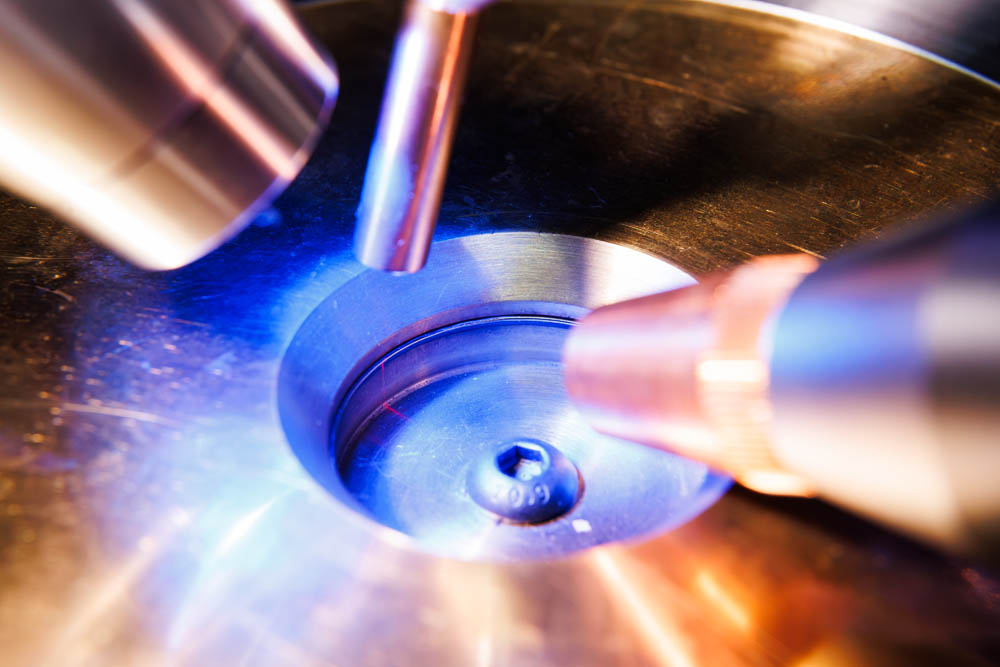

Built around the Weldlogic Fiber Laser CW/Pulsed and managed by the AWS Advanced Welding System Controller, the Automatic I.D. Laser Edge Weld Cell features a specially designed I.D. welder accommodating a wide range of diameters and thicknesses. Self-locating copper tooling provides gas coverage on both sides of the weld, while AC Servo Motors and closed-loop high-accuracy calibration deliver better than +1% weld repeatability — every cycle.

BENEFITS

• Low-skill operator — no experienced welders required
• Weld recipes repeat to ±1%
  • AC Servo driven with closed-loop wattage control
• No consumables — accept gas
• Low heat input — no distortion, clean weld bead
• Up to 200%+ faster weld speed vs. Micro-TIG / Plasma
• No post-weld cleanup
• No PM required
• Quick changeover in less than 3 minutes — .250″ to 8.0″ diameter range
