AWS Vertical Circumferential Laser Weld Cell

Fully Automated High-Precision Laser Welding

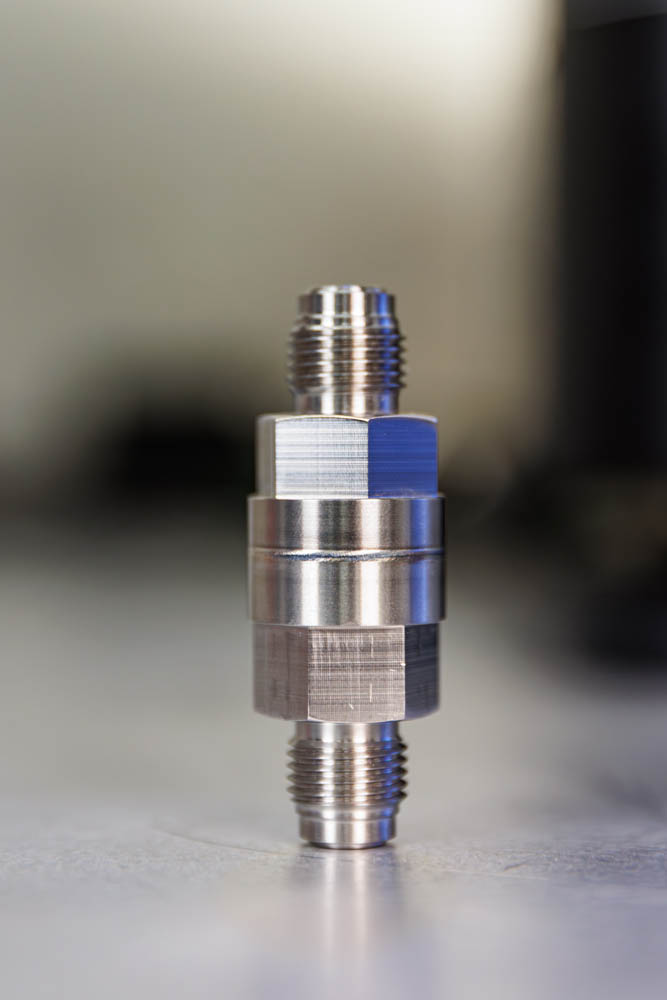

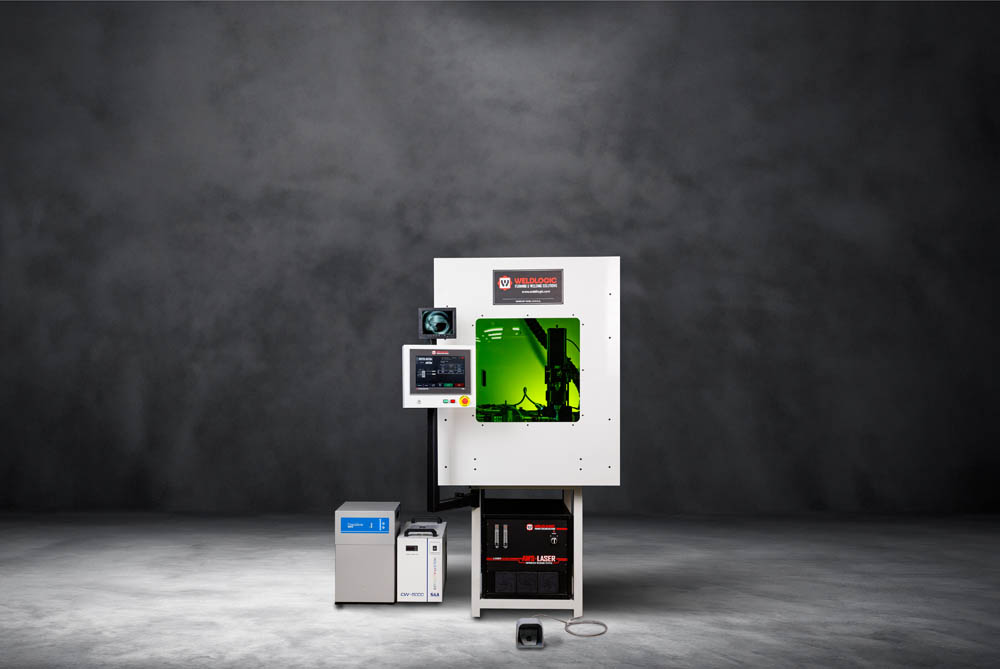

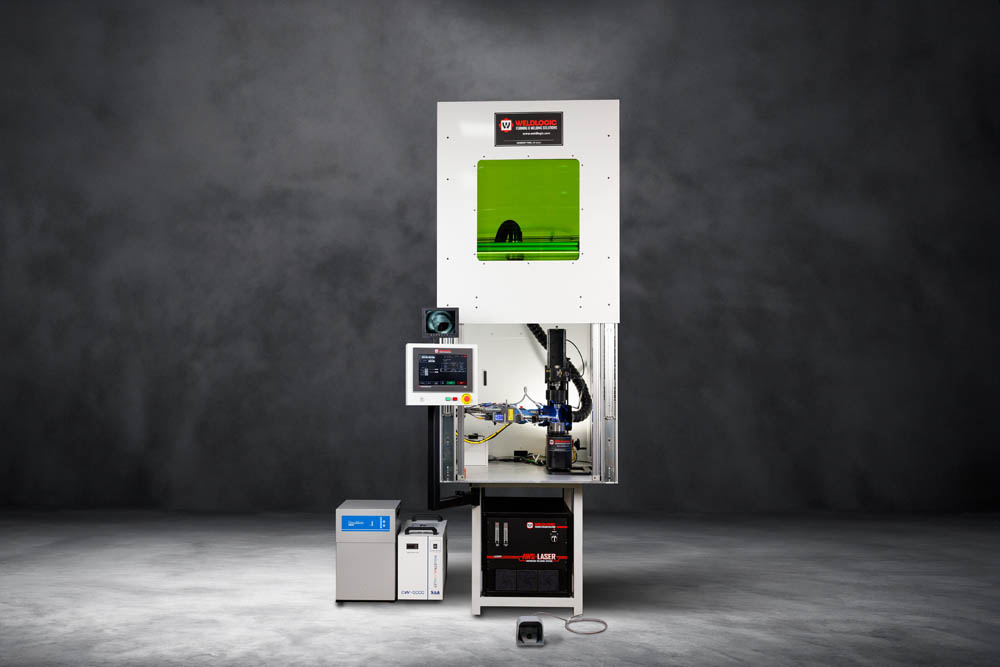

The Weldlogic AWS Vertical Circumferential Laser Weld Cell is a fully automated, Class 1 Laser Safe work cell engineered for high-precision, high-throughput circumferential seam welding on cylindrical, tubular, and can-style components. Vertically oriented to maximize floor space efficiency, this system delivers repeatable, low-heat-input welds on the most demanding hermetic seal, tube-to-flange, and precision assembly applications.

Vertical Orientation. Maximum Efficiency.

The vertical design minimizes floor space while enabling superior access to the weld zone — delivering consistent, low-heat-input circumferential seams ideal for the tightest tolerance applications.

Fully Integrated. Zero Compromise.

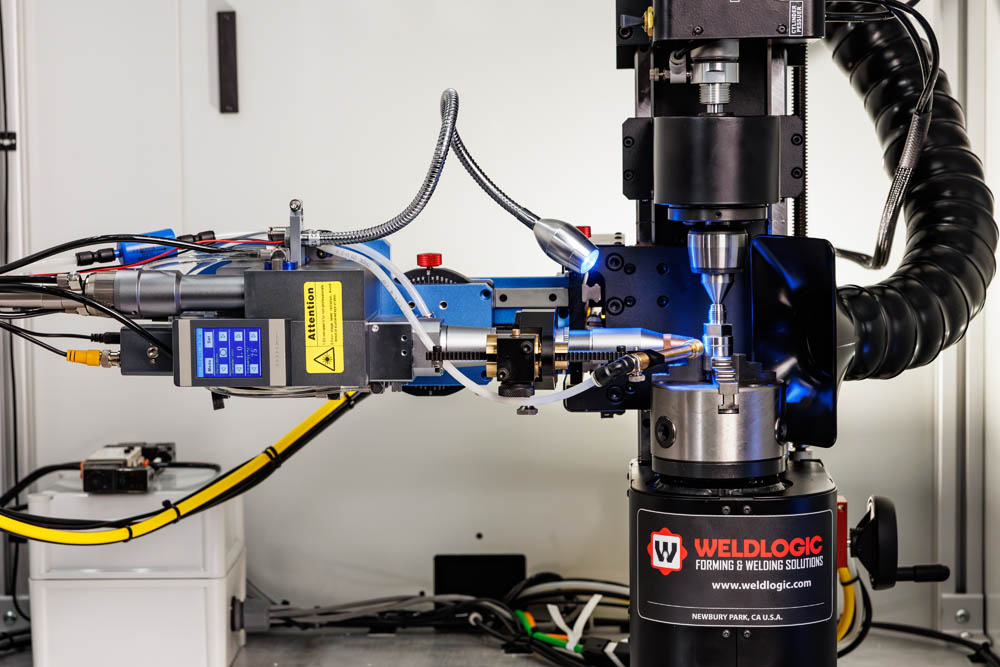

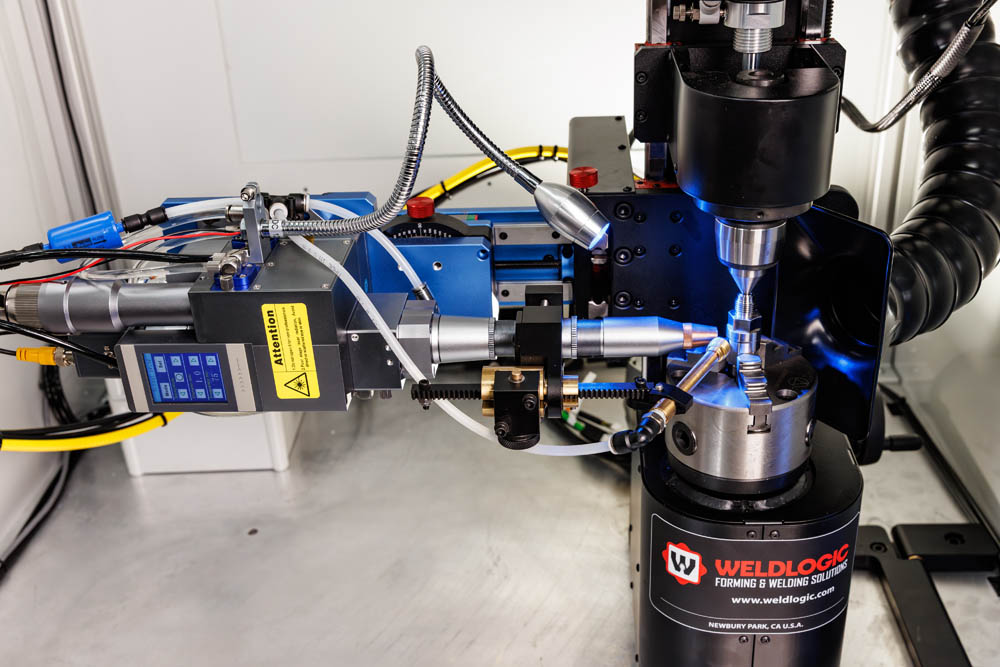

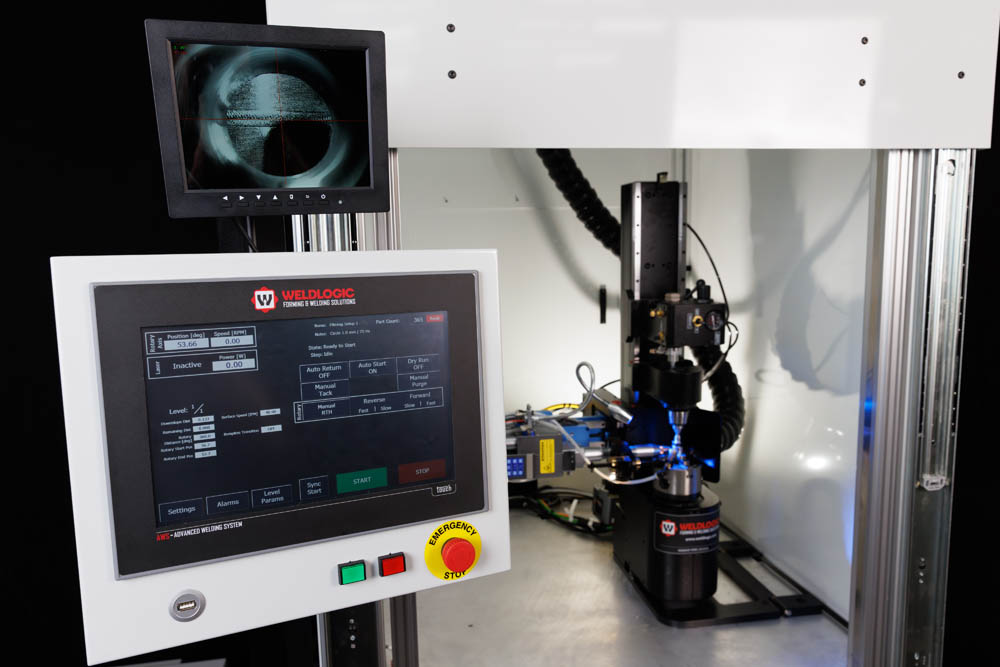

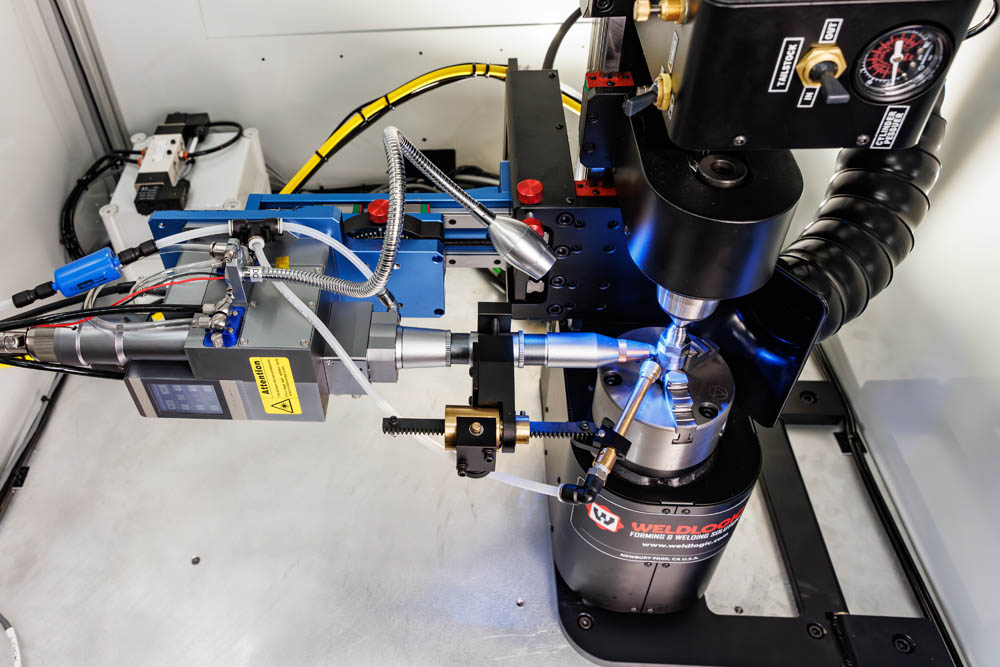

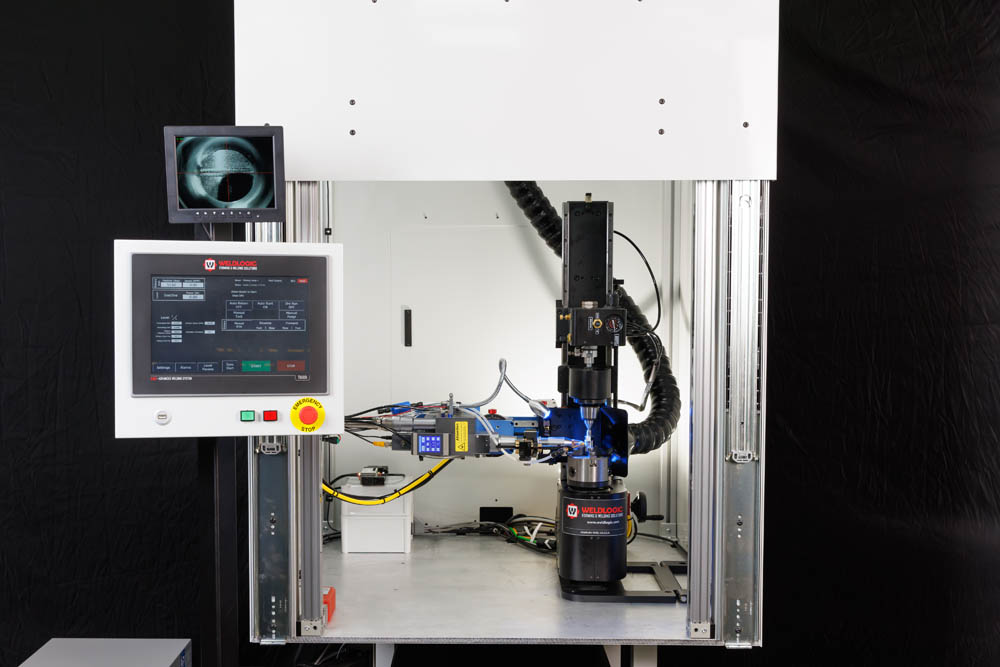

Built around a precision vertical welding lathe, fiber laser, and CNC controlled programming – the AWS Vertical Laser Weld Cell integrates automated part handling with feeders, loaders, and ejectors for a true lights-out capable production platform. Advanced features including seam tracking and beam oscillation ensure consistent weld quality on every part, every cycle.

Key Features:

• Fully automated Class 1 Laser Safe work cell

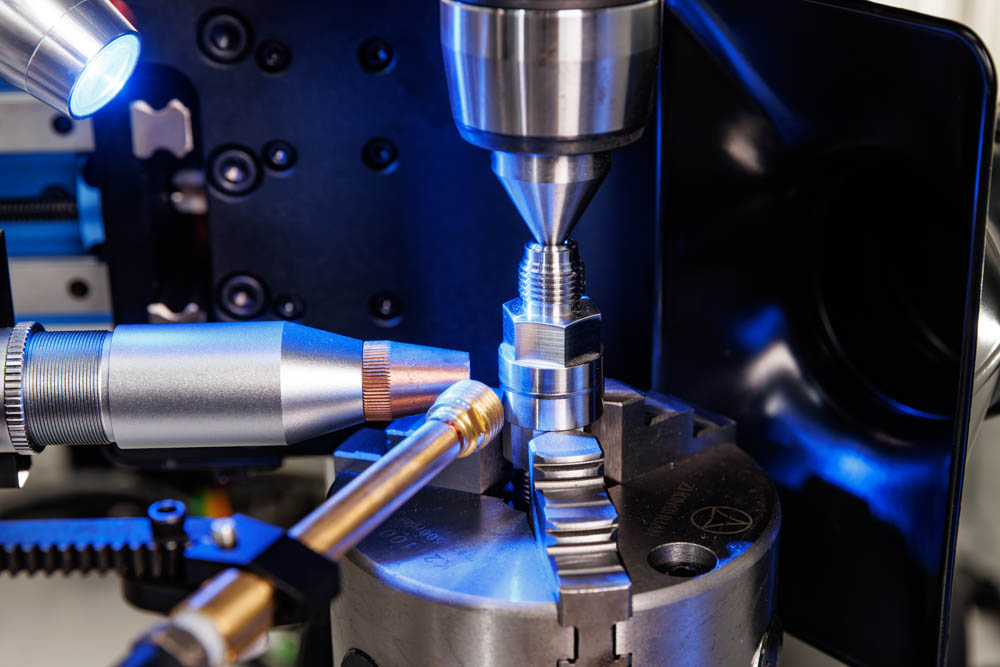

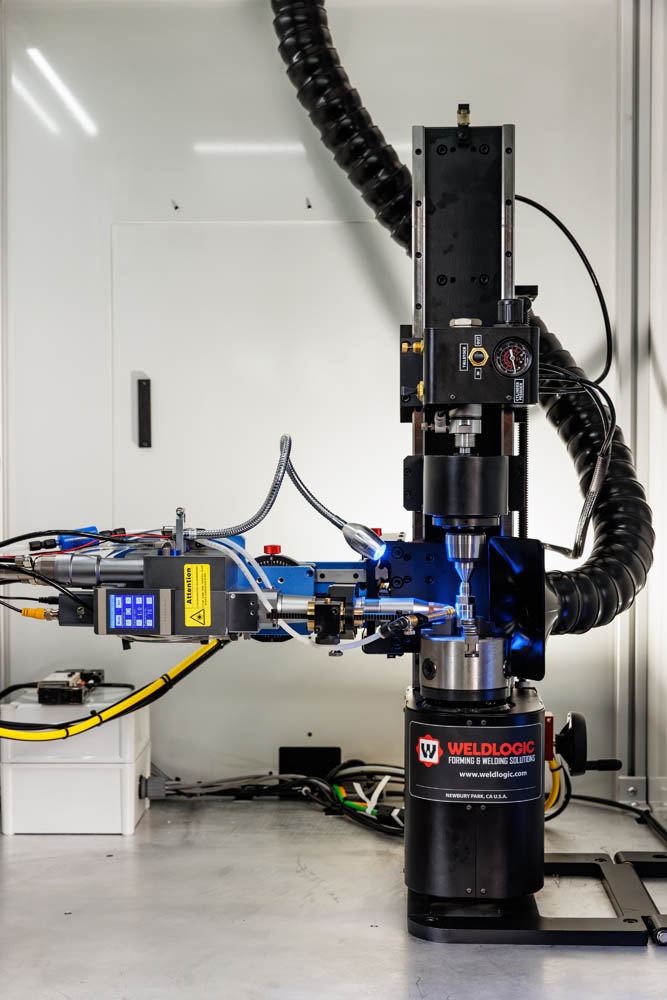

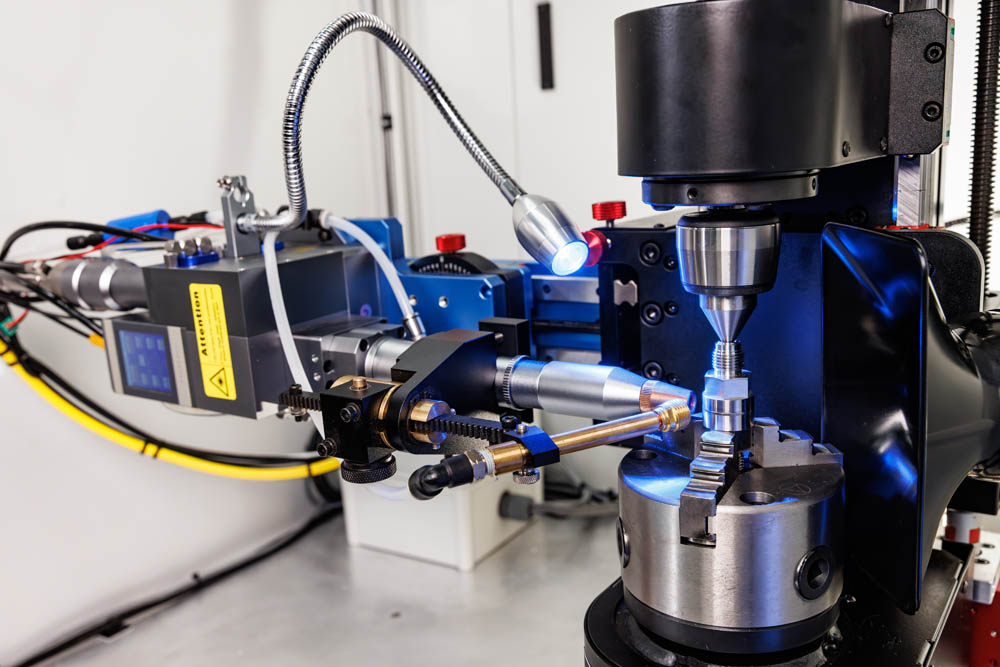

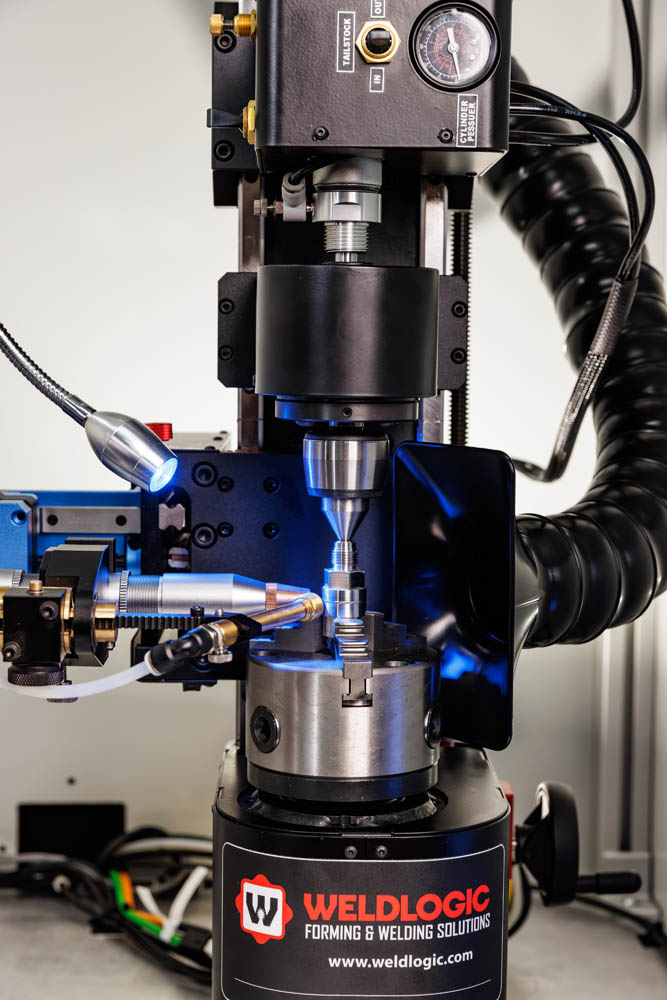

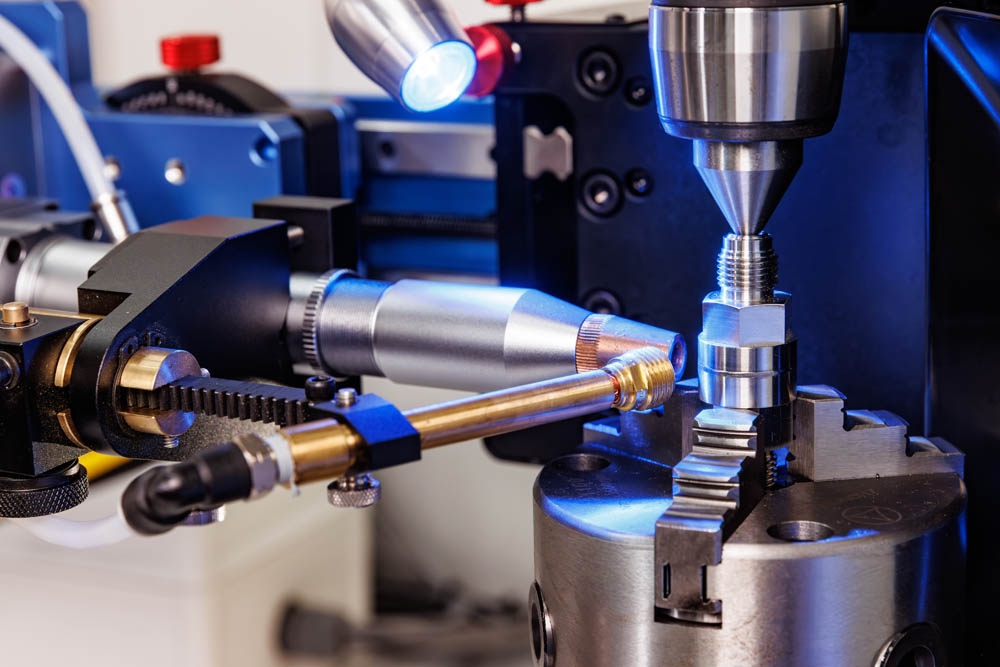

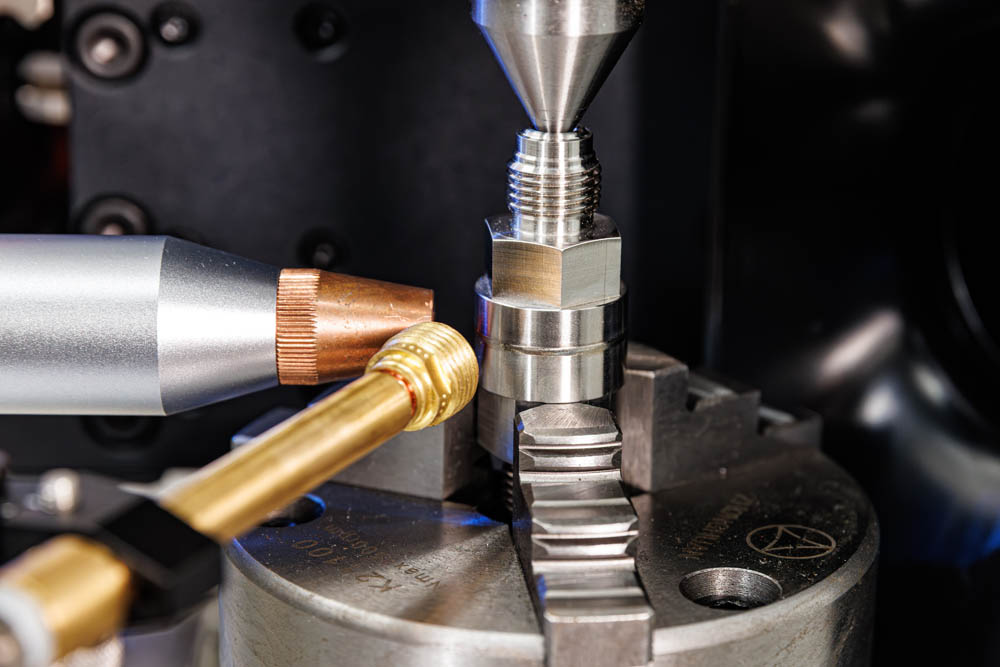

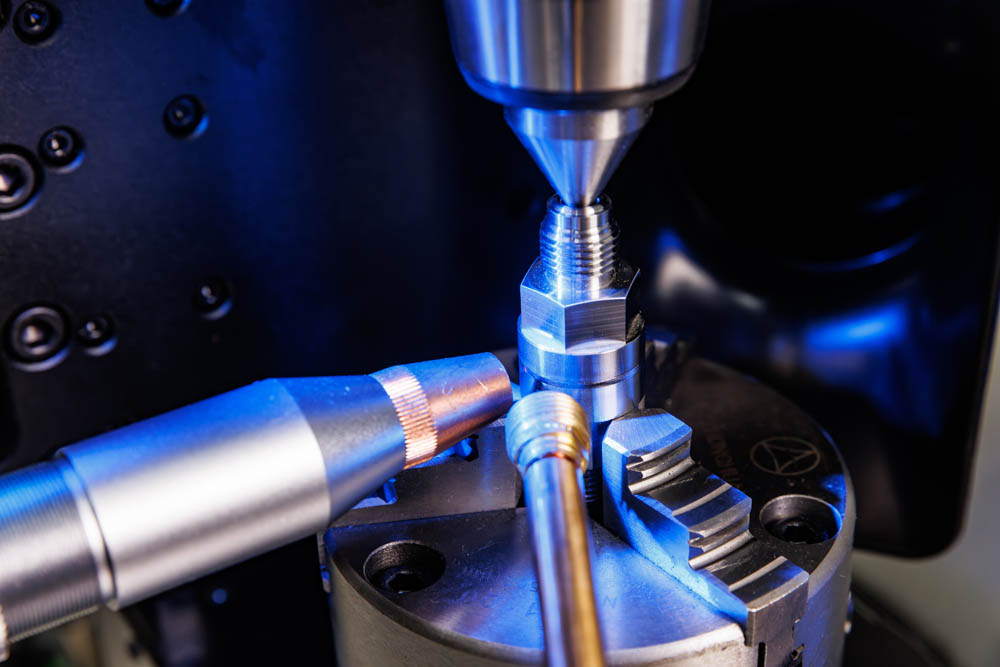

• Precision vertical welding lathe with fiber laser

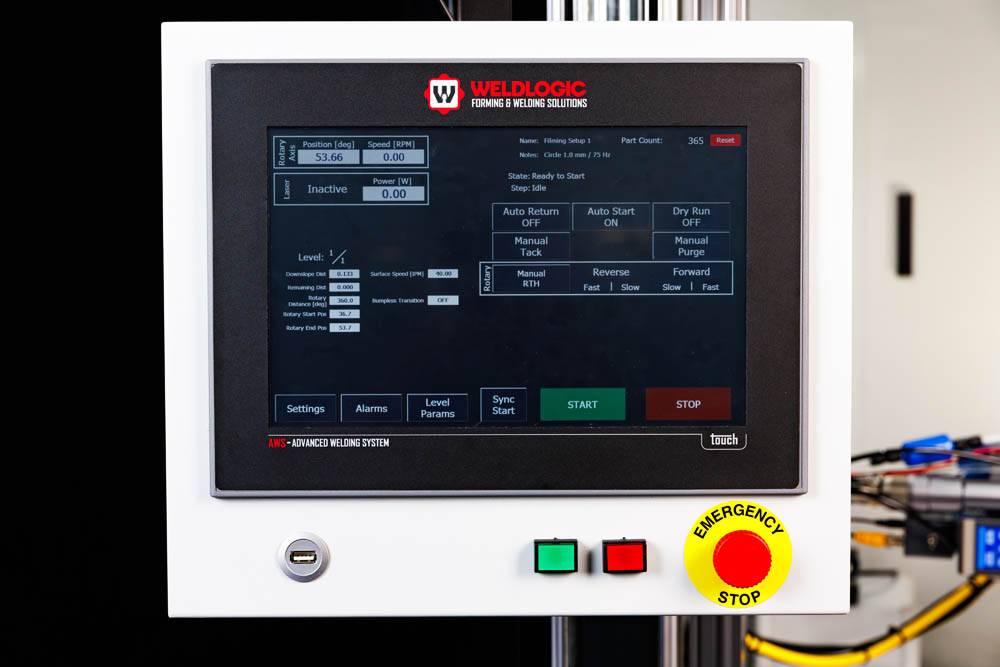

• CNC recipe-driven repeatable weld parameters stored by part number
• Automated feeders, loaders & ejectors

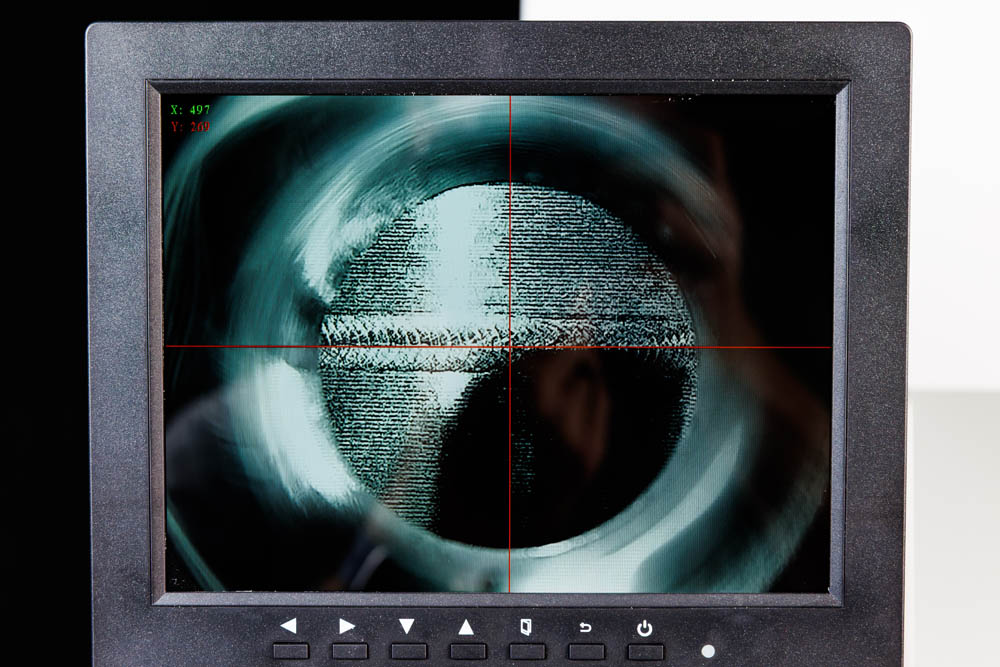

• Seam tracking & beam oscillation
• Low heat input — minimal distortion on precision components
• Compact vertical footprint — maximizes floor space
