Introduction
CHALLENGE

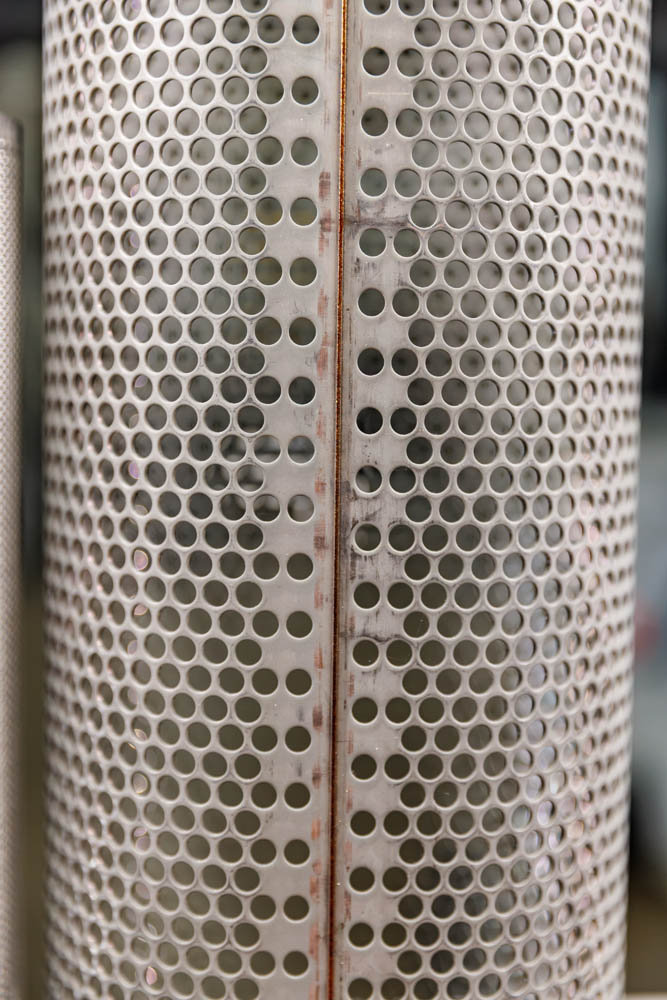

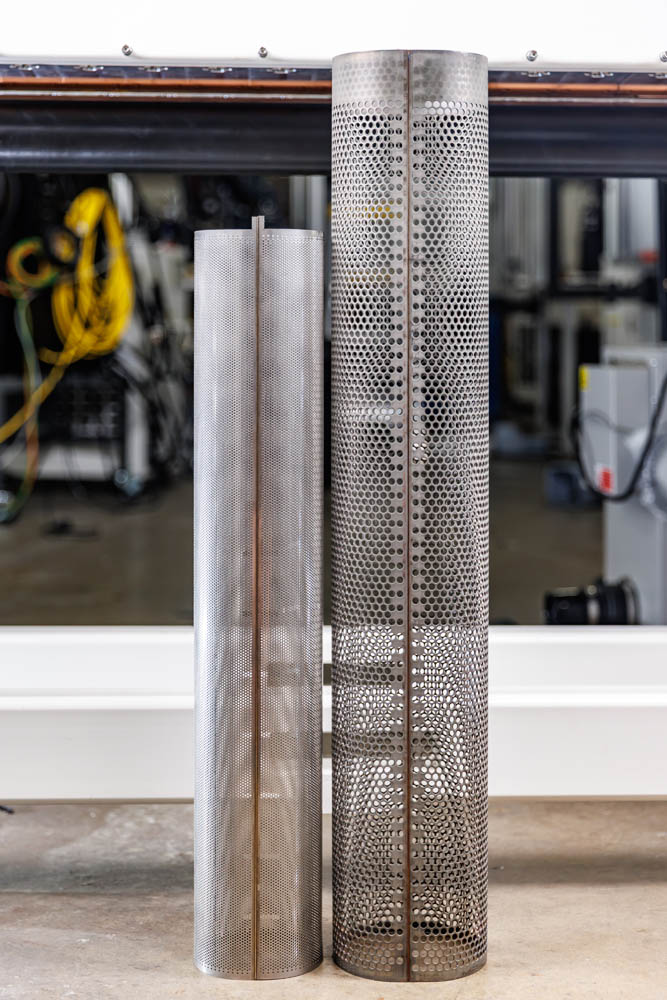

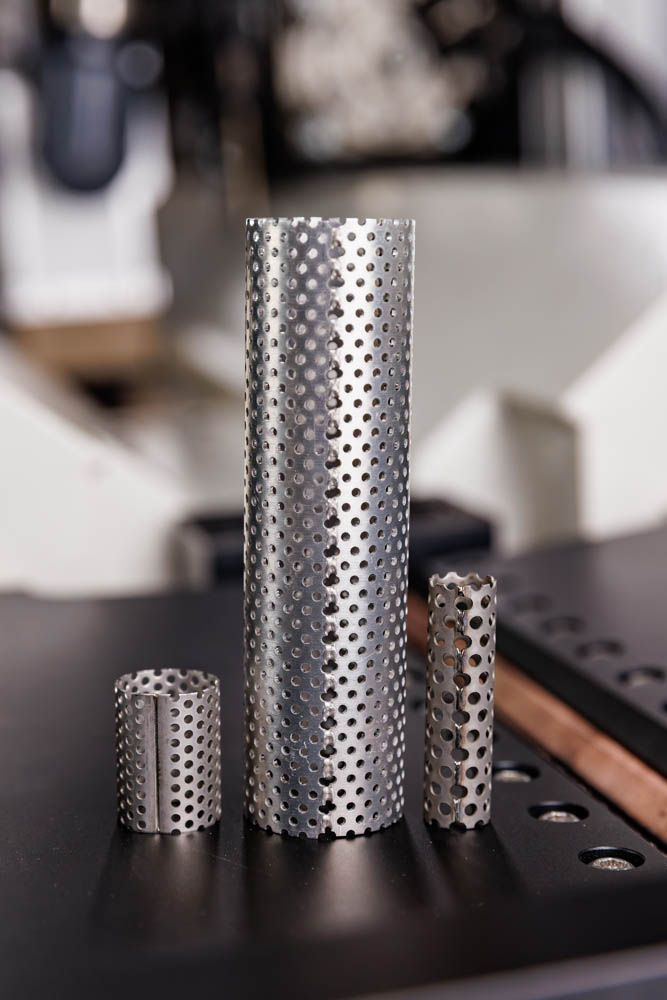

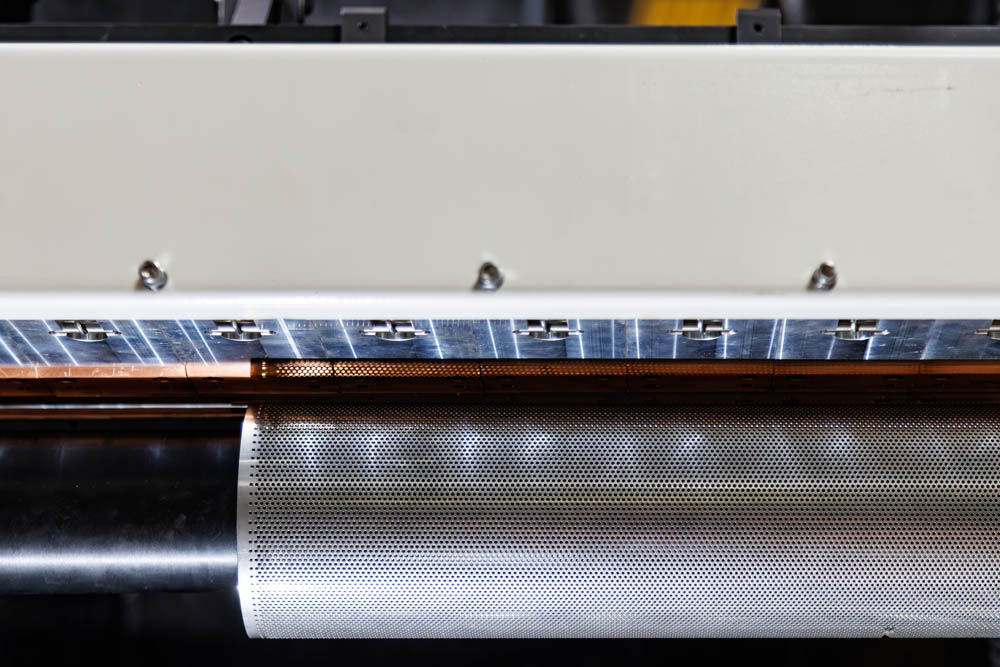

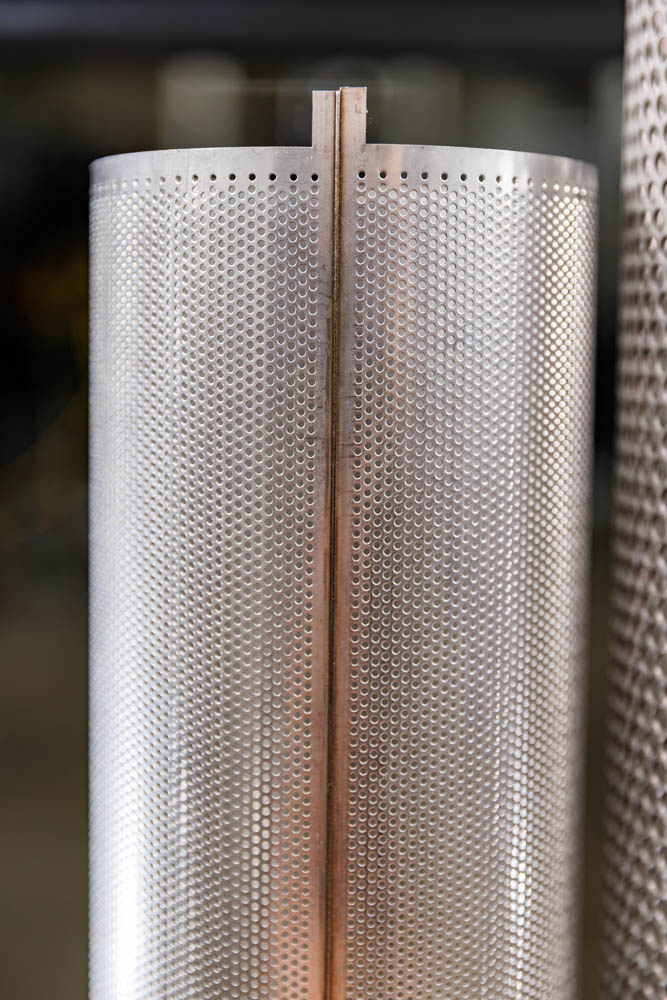

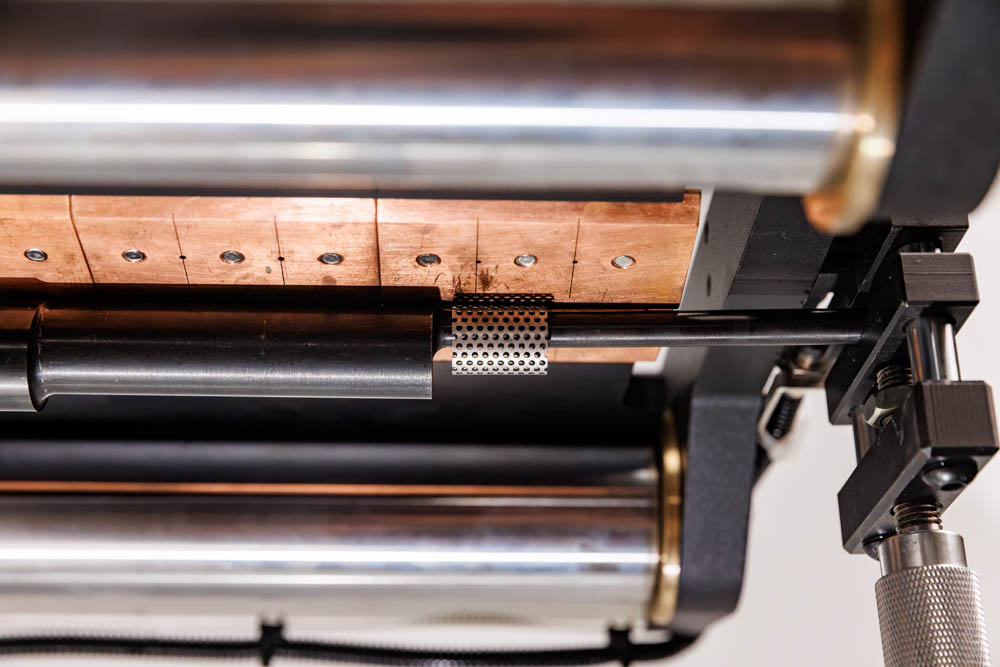

The Production ChallengeA longtime Weldlogic customer needed a single laser seam welding platform capable of handling perforated tubes from .750″ to 36″ in diameter, lengths from 1.5″ to 48″, and wall thicknesses starting at .015″ and up. The diameter range was too wide for any single seam welder to address effectively.
SOLUTION

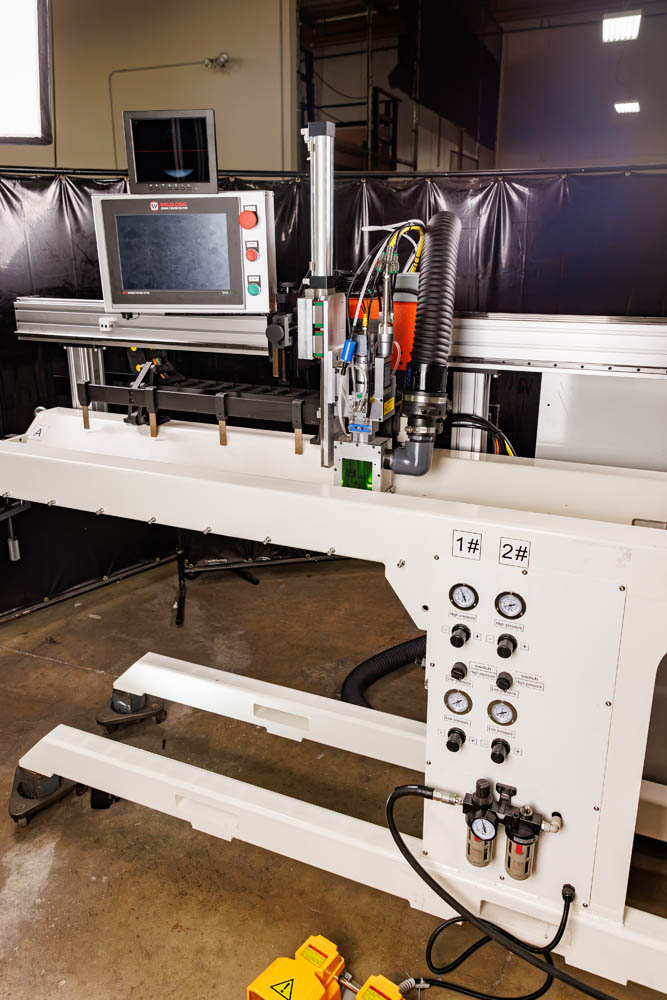

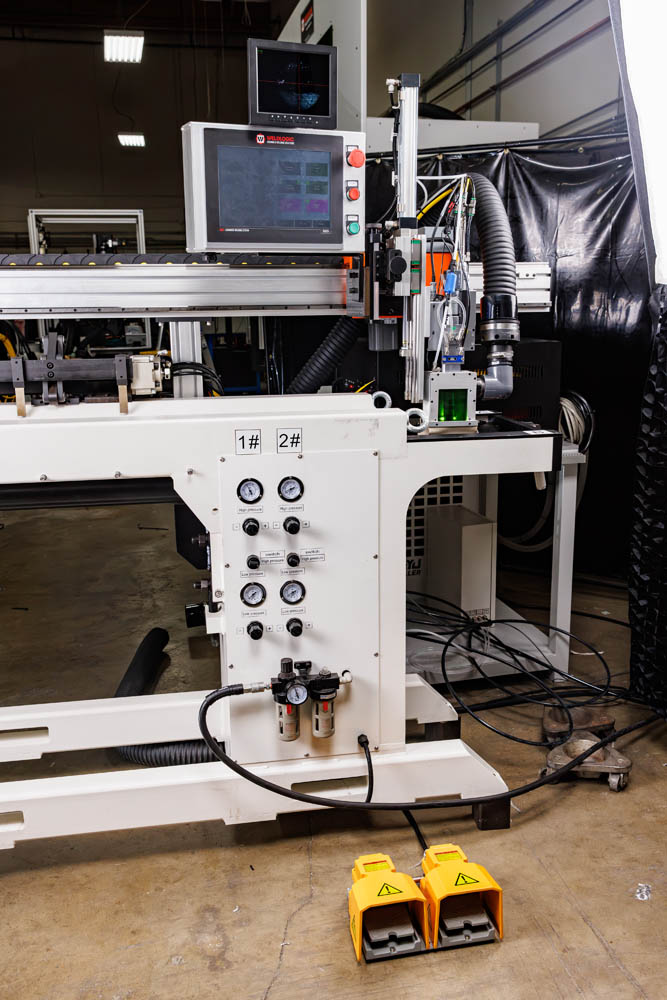

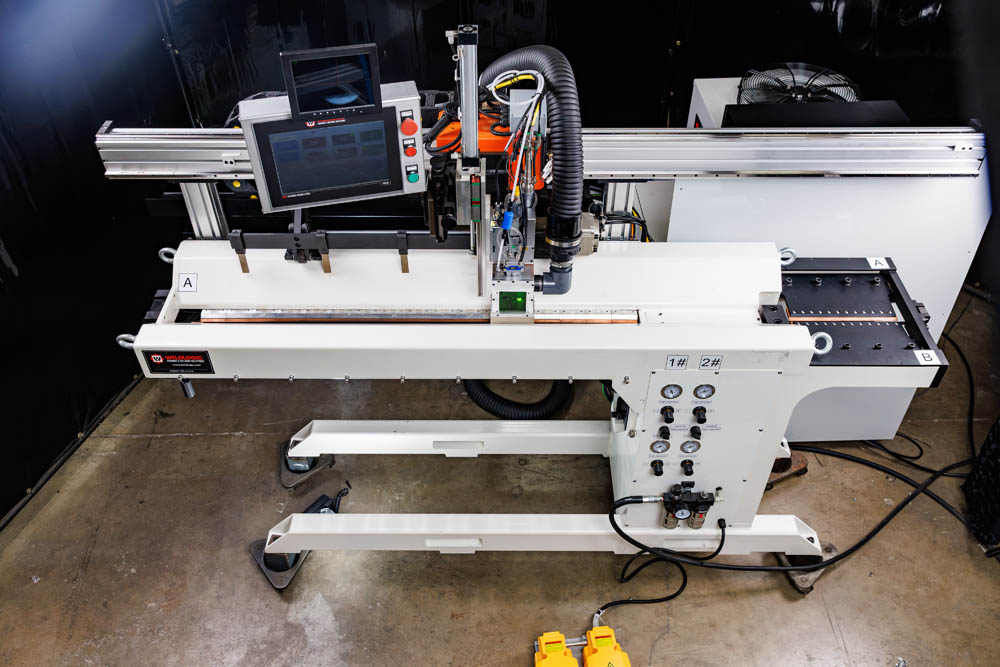

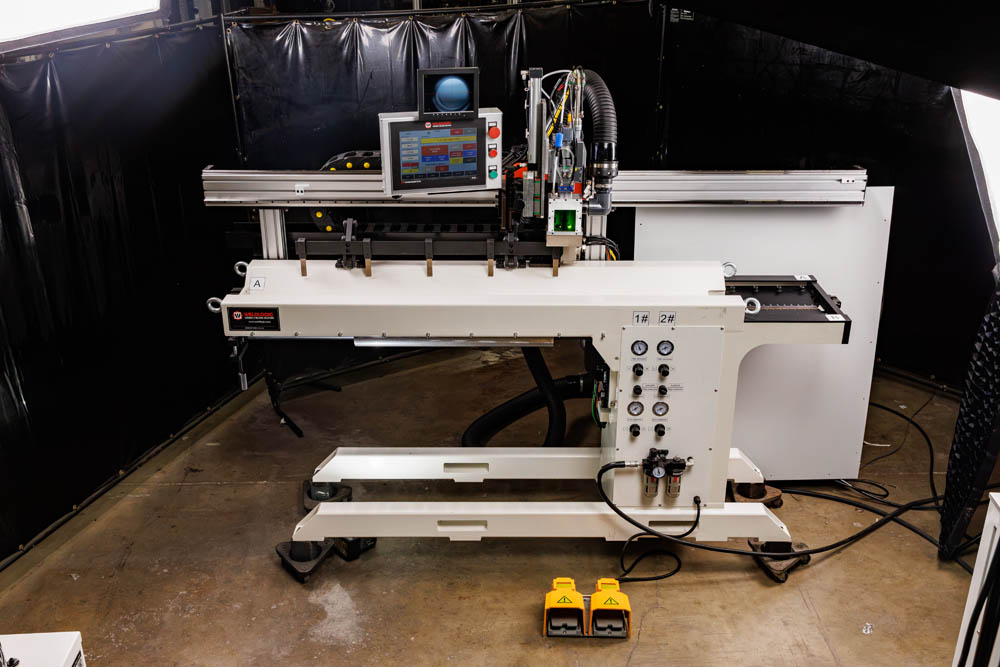

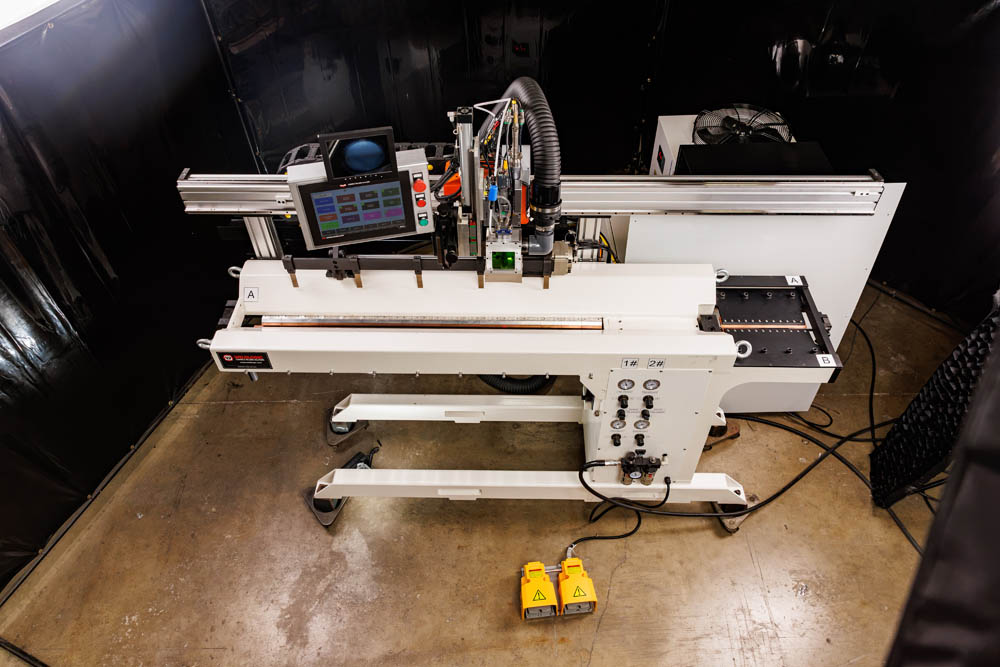

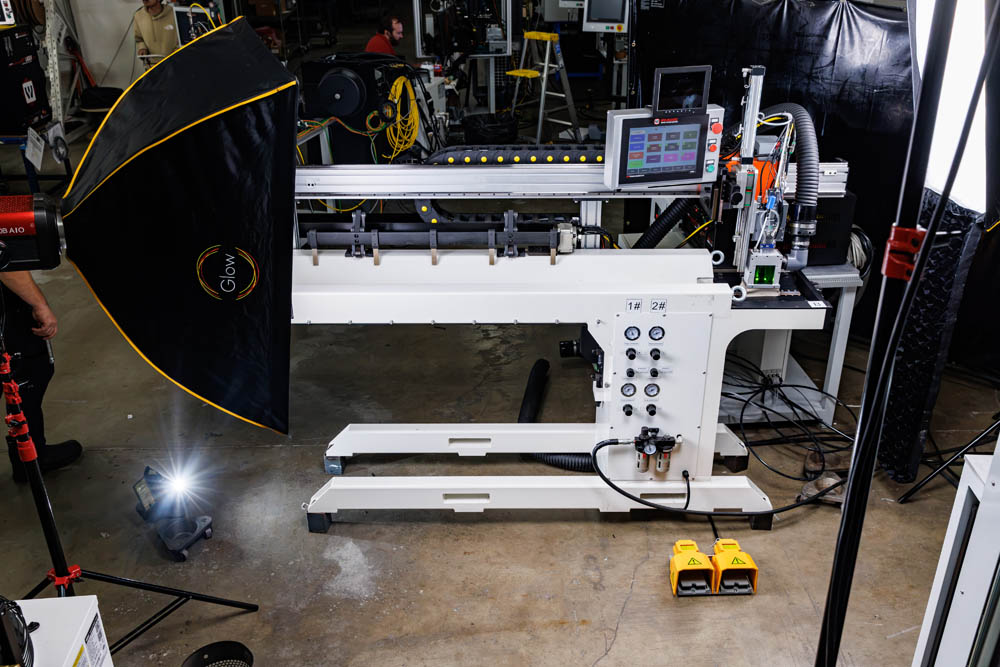

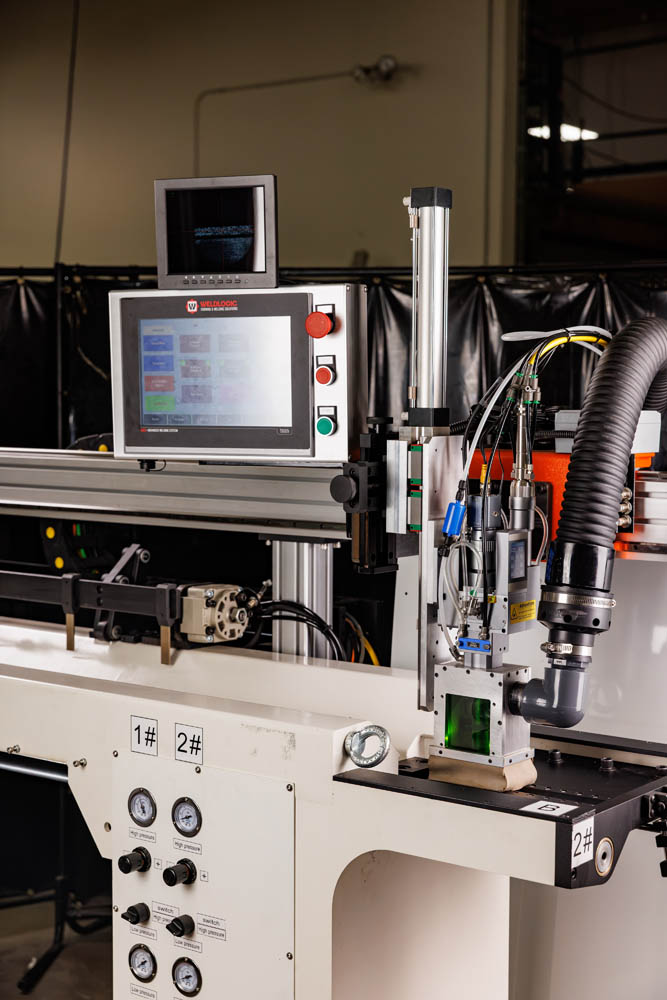

Designed and built a dual seam welder — the PLS-48 for large diameters and the UPS-12 for small — on one shared platform, time-sharing a single AWS Laser between both systems. The result delivered the performance of two advanced laser seam welders at a fraction of the cost.
BENEFITS
- No certified welder required — any operator can run it
- Operator trained in less than 3 hours
- High welding speeds — clean, water-tight welds
- Very low heat input — very low distortion
- No consumables — low preventive maintenance
- Accommodates all weldable materialsFeatures
Video
Gallery
Features
-

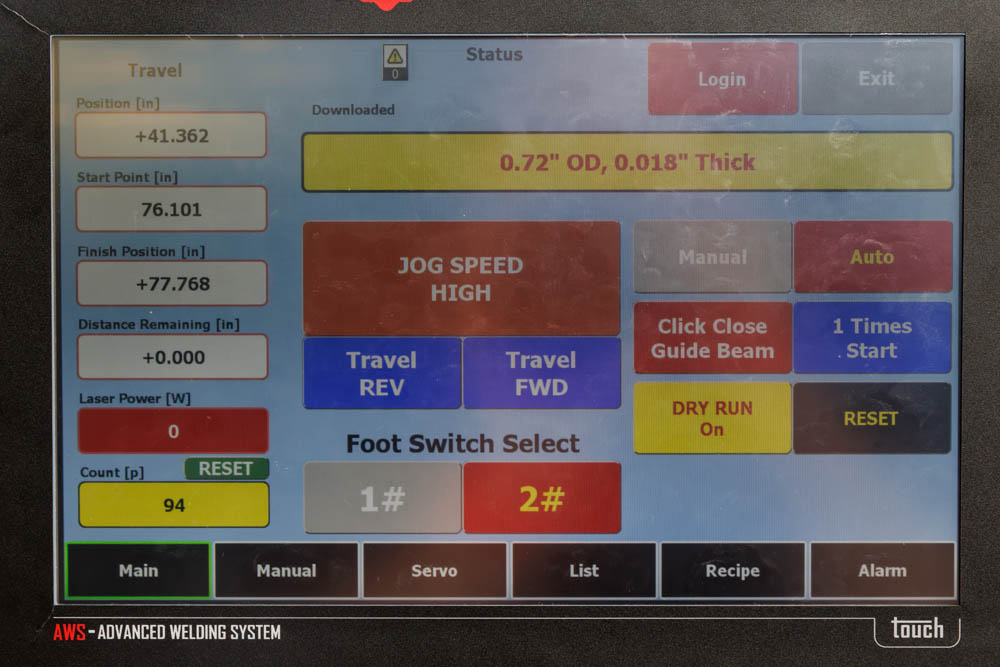

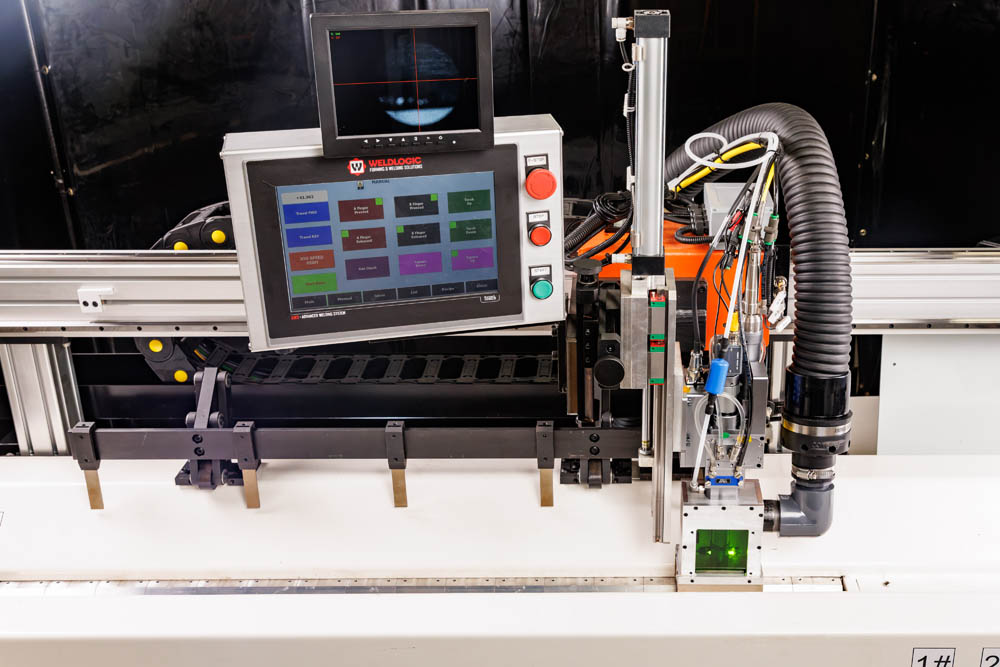

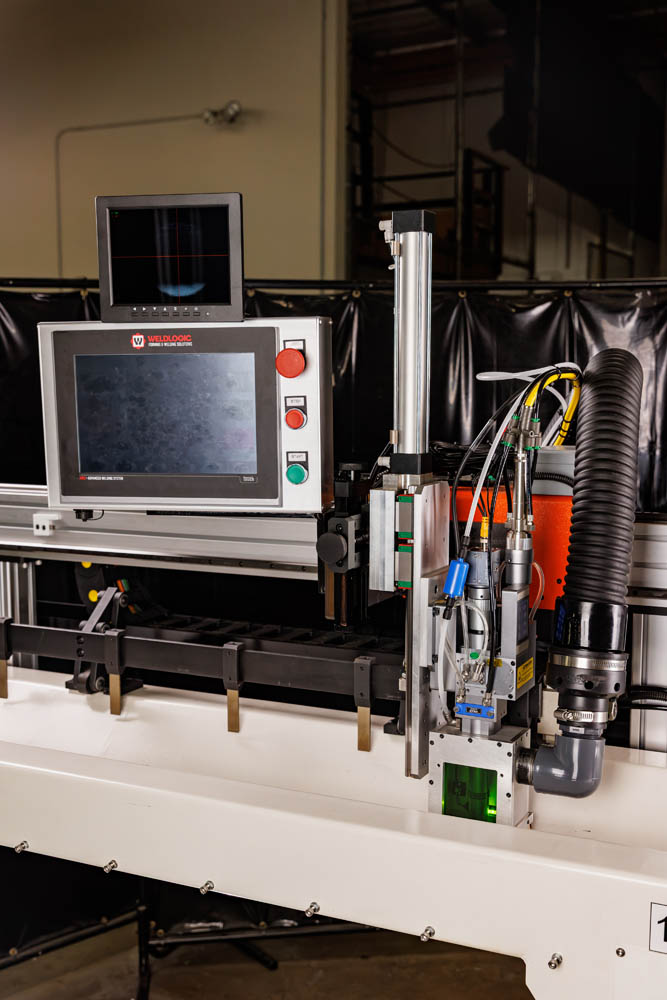

- Advanced Laser Weld System Controller — unlimited recipe storage
- Welds large and small diameter tubes on one platform
- CNC / AC Servo — position and speed based

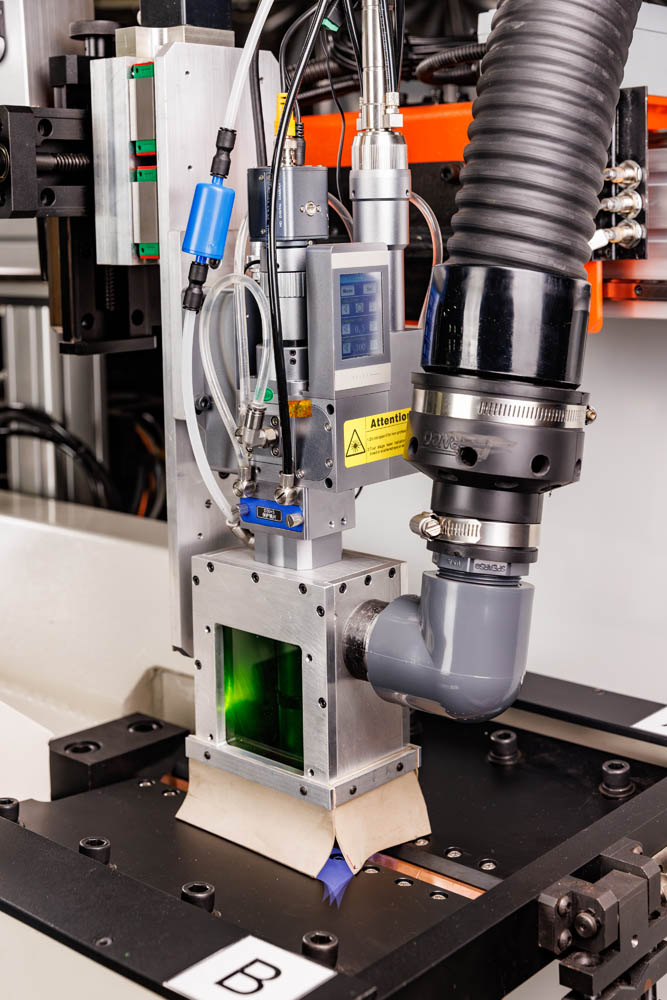

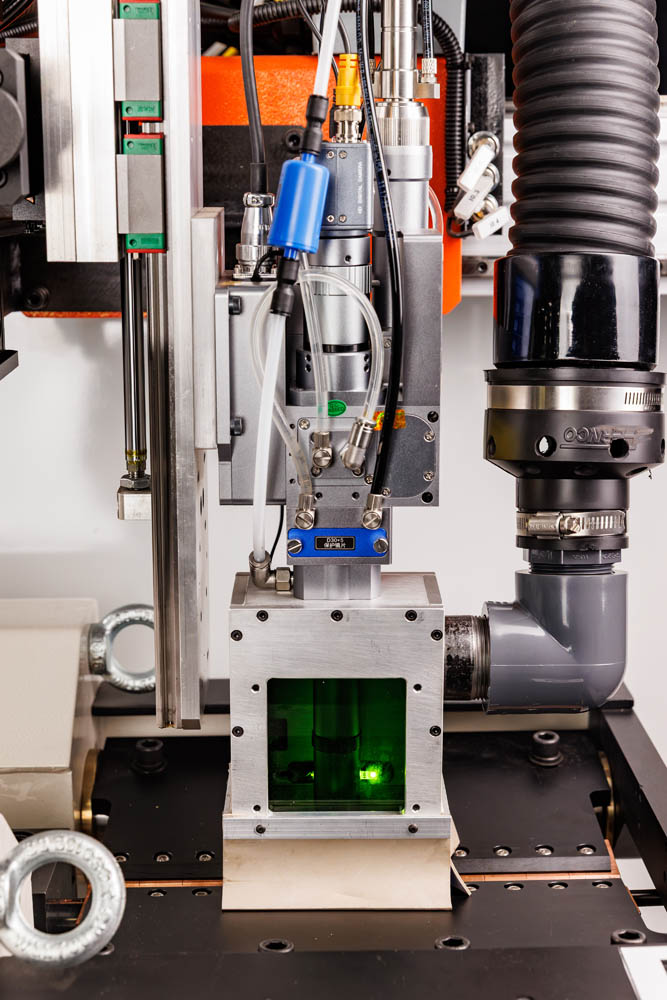

- Wire feed or fusion laser welding
- Laser beam oscillation / wobble
- Designed for all weldable materials
- Supported by Weldlogic Service Dept. and Laser Weld Specialists
Specifications
N/A
Applications
N/A
