High Production CNC Laser Suppressor Welding Cell Seam Tracker

Fully Automated High-Precision Laser Welding

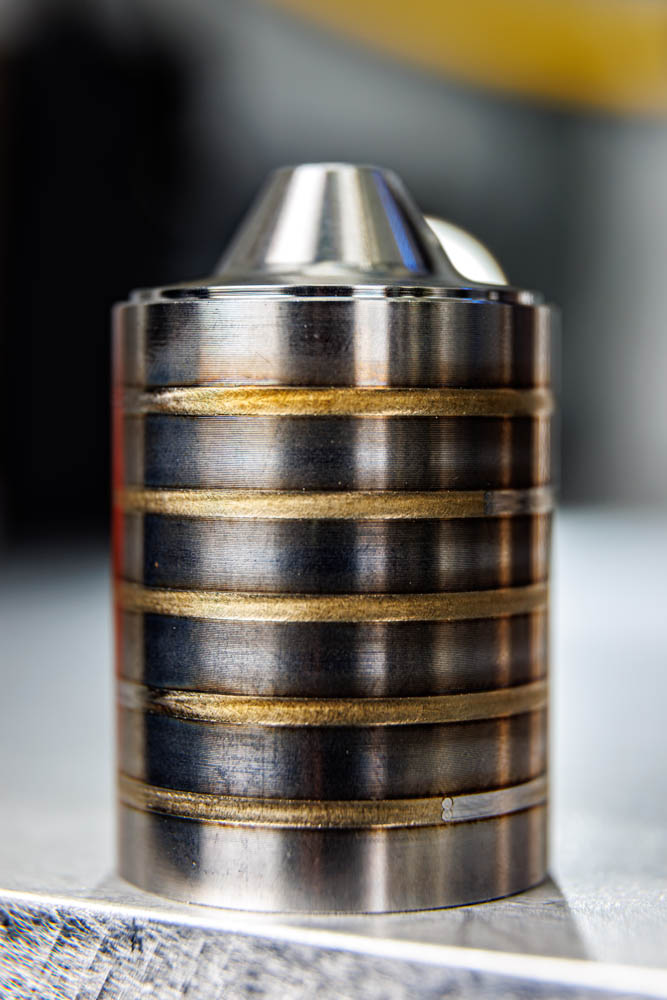

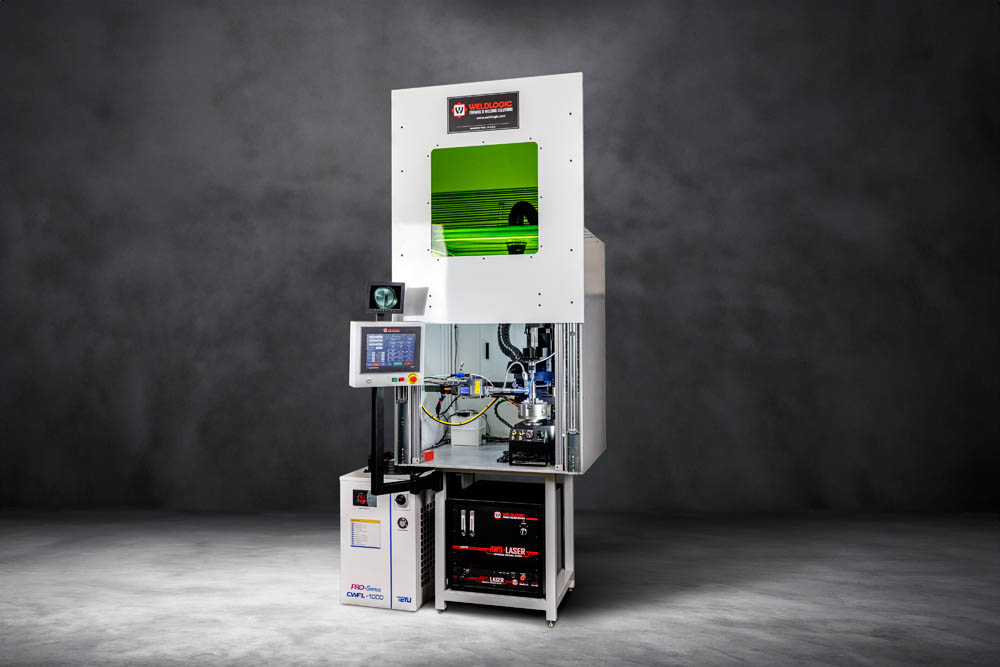

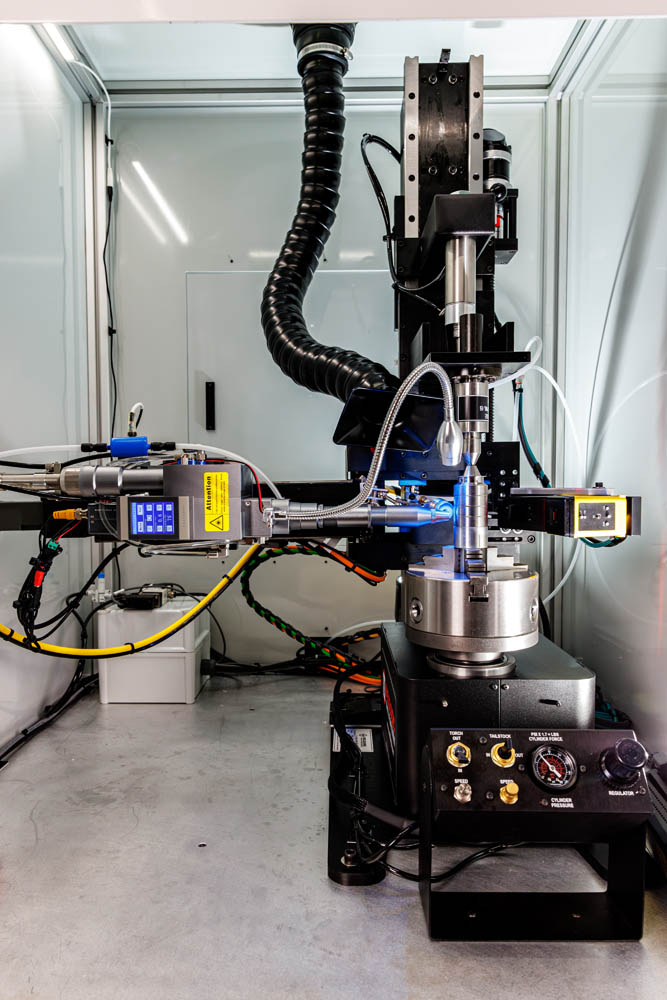

The Weldlogic AWS Vertical Circumferential Laser Weld Cell is a fully automated, Class 1 Laser Safe work cell engineered for high-precision, high-throughput circumferential seam welding on cylindrical, tubular, and can-style components. Vertically oriented to maximize floor space efficiency, this system delivers repeatable, low-heat-input welds on the most demanding hermetic seal, tube-to-flange, and precision assembly applications.

Vertical Orientation. Maximum Efficiency.

The vertical design minimizes floor space while enabling superior access to the weld zone — delivering consistent, low-heat-input circumferential seams ideal for the tightest tolerance applications.

Fully Integrated. Zero Compromise.

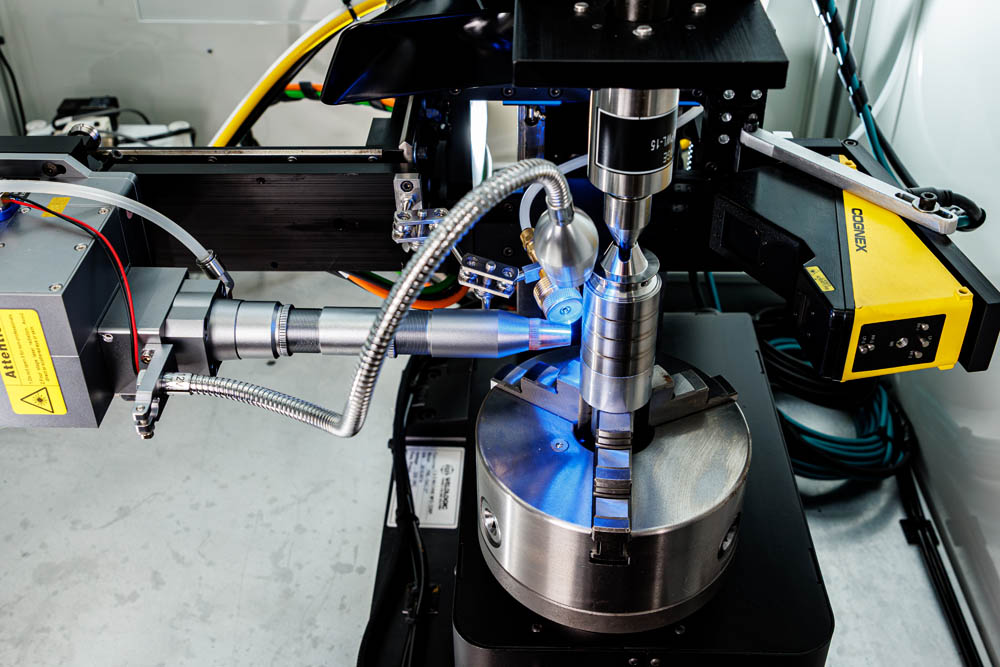

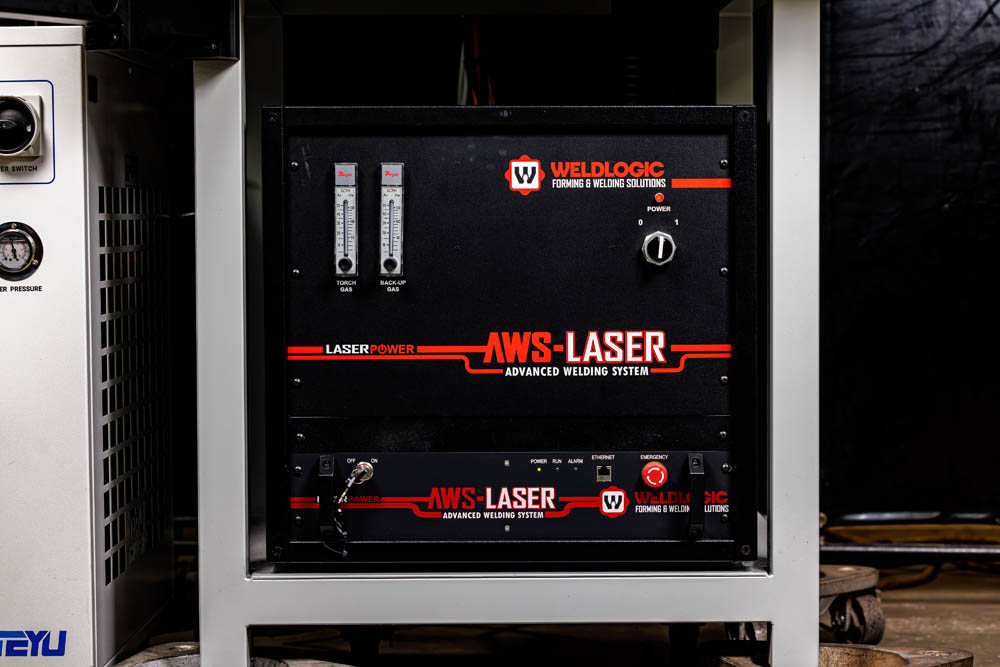

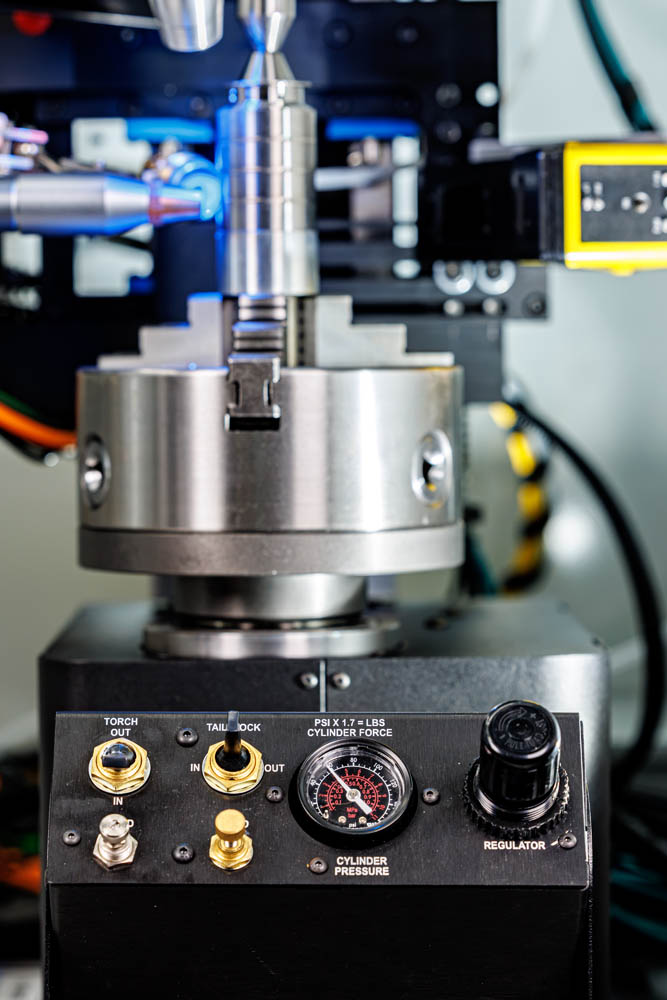

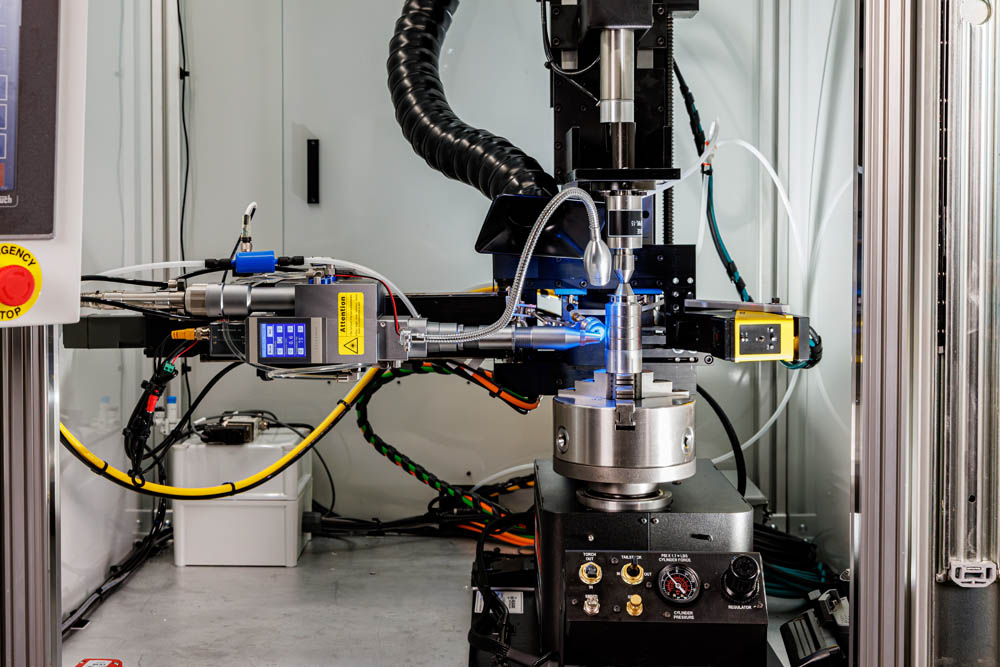

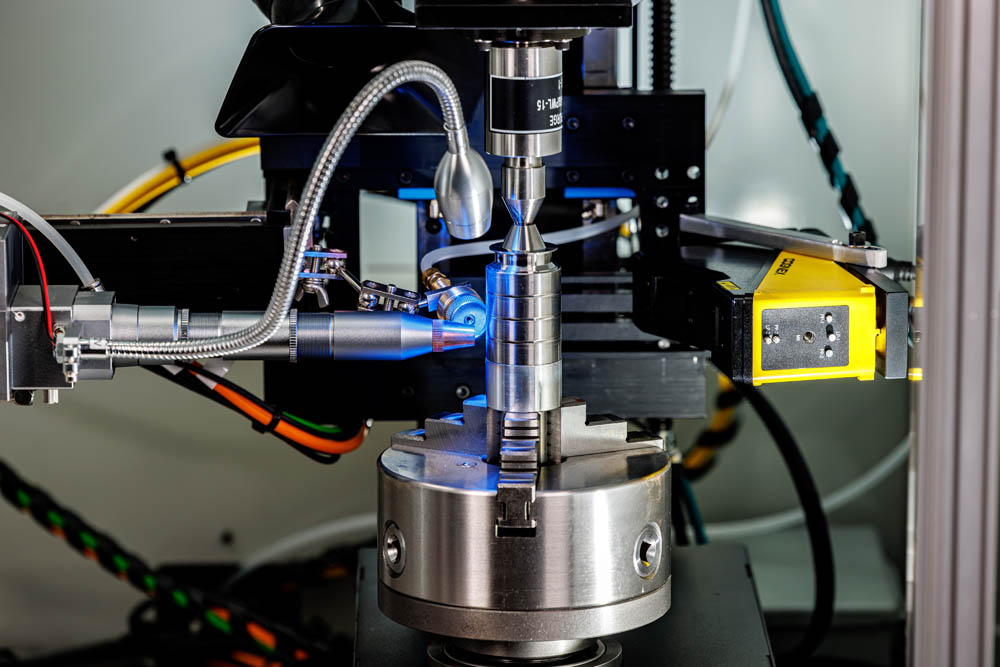

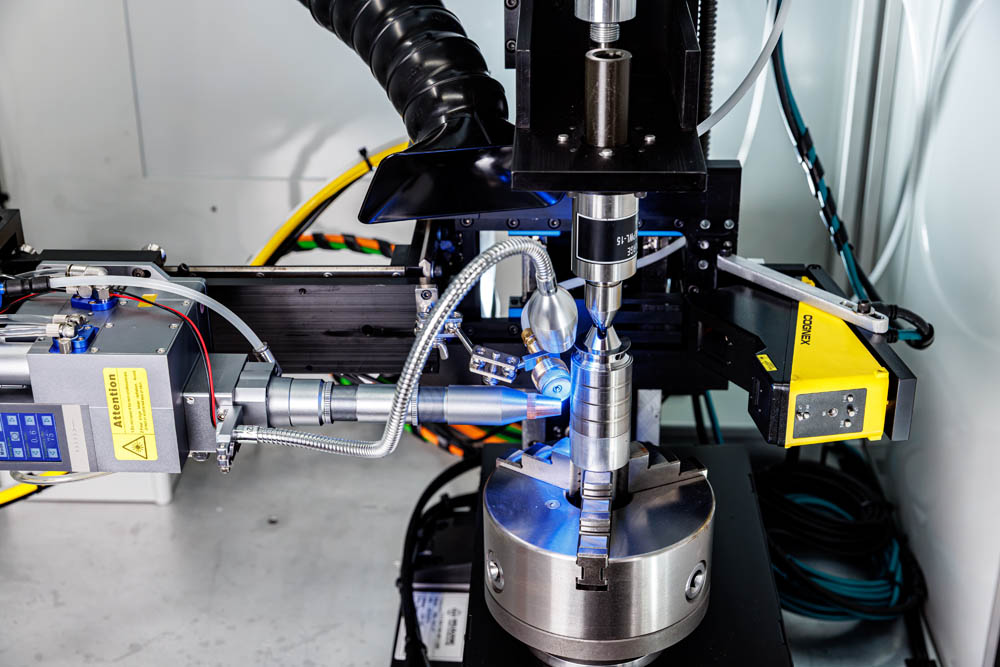

Built around a precision vertical welding lathe, fiber laser, and CNC controlled programming — the AWS Vertical Laser Weld Cell integrates automated part handling with feeders, loaders, and ejectors for a true lights-out capable production platform. Advanced features including seam tracking and beam oscillation ensure consistent weld quality on every part, every cycle.

Benefits

• Laser Delivers Deep Penetration with minimal heat input compared to “all other welding processes”. No-Warpage.

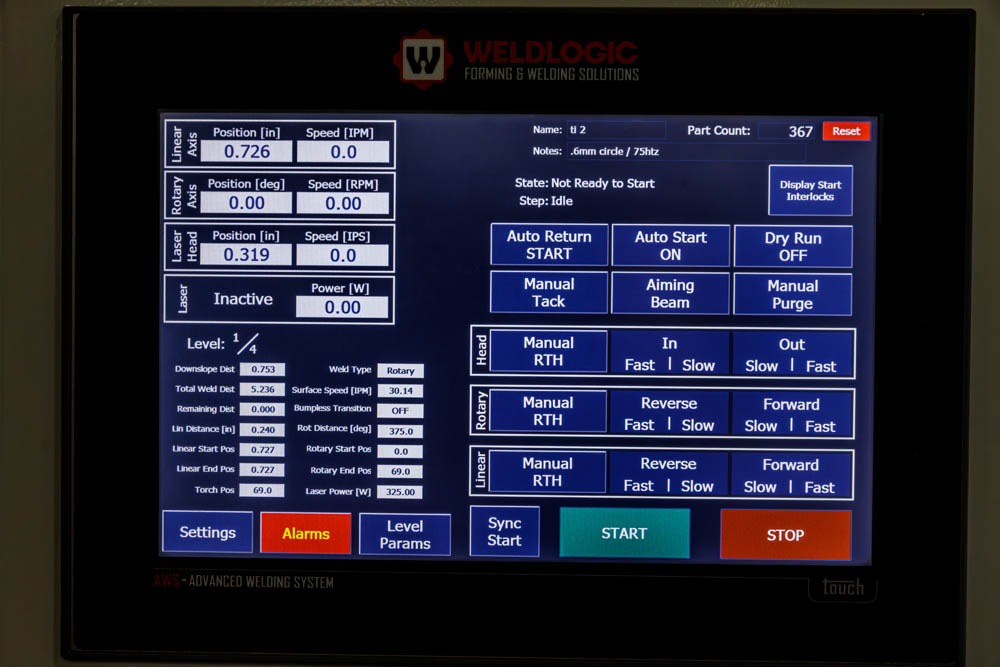

• Programmable Weld Schedules that store and repeat the result using A.C. Servo drives and closed loop laser wattage that repeats to better than +/-1%.

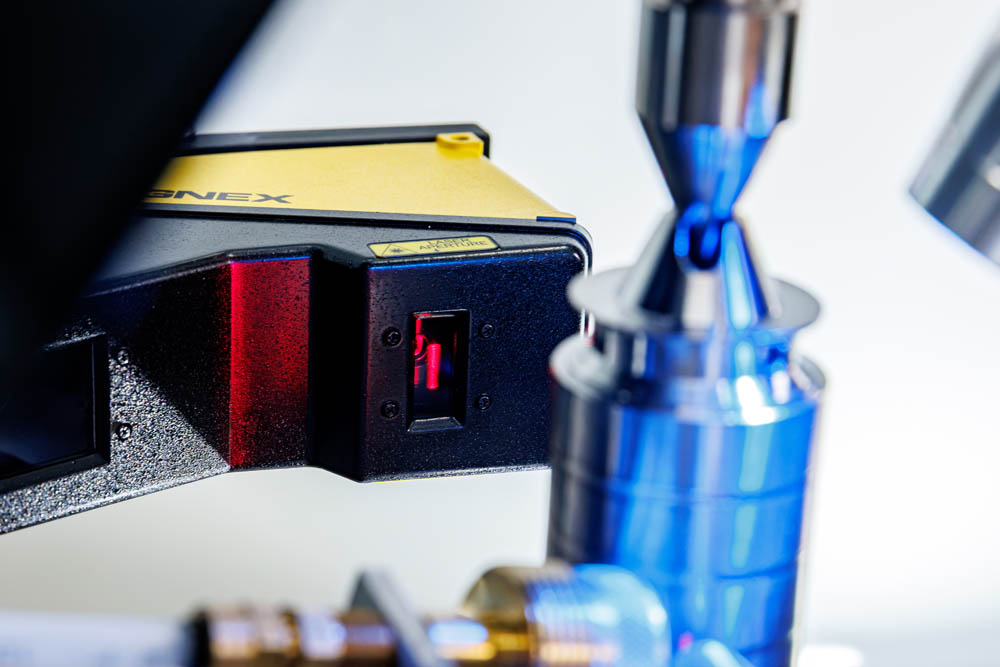

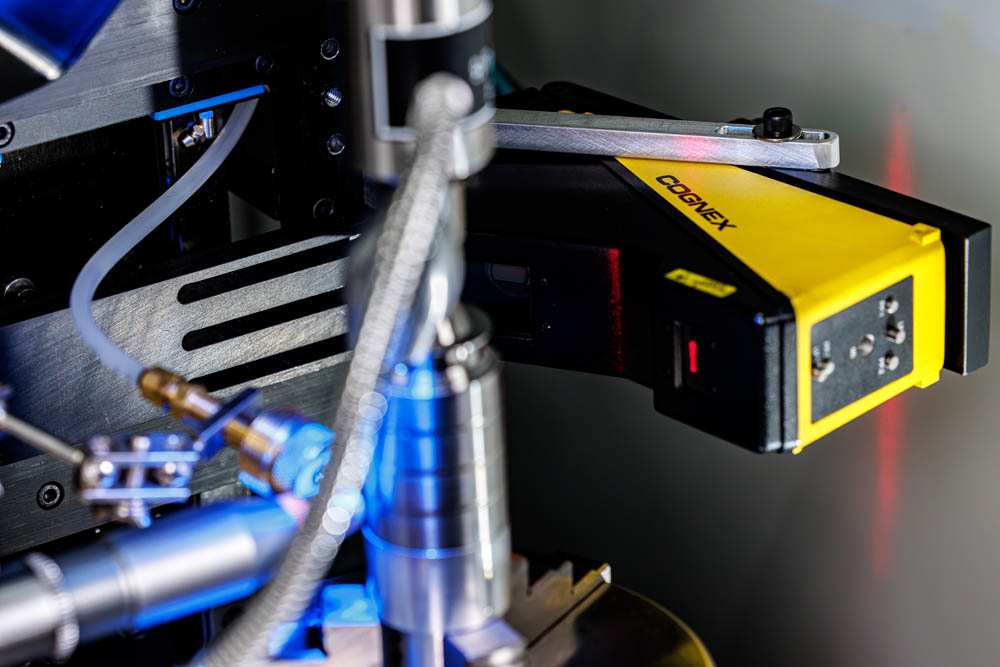

• Optional Seam Tracker enables machining tolerances and still keeps Laser Beam right in the sweet spot every time.
• Machine runs automatically enabling operator to perform assembly tasks or other operations.
